Fusible Link Block Assembly No. 2 Inner Circuit

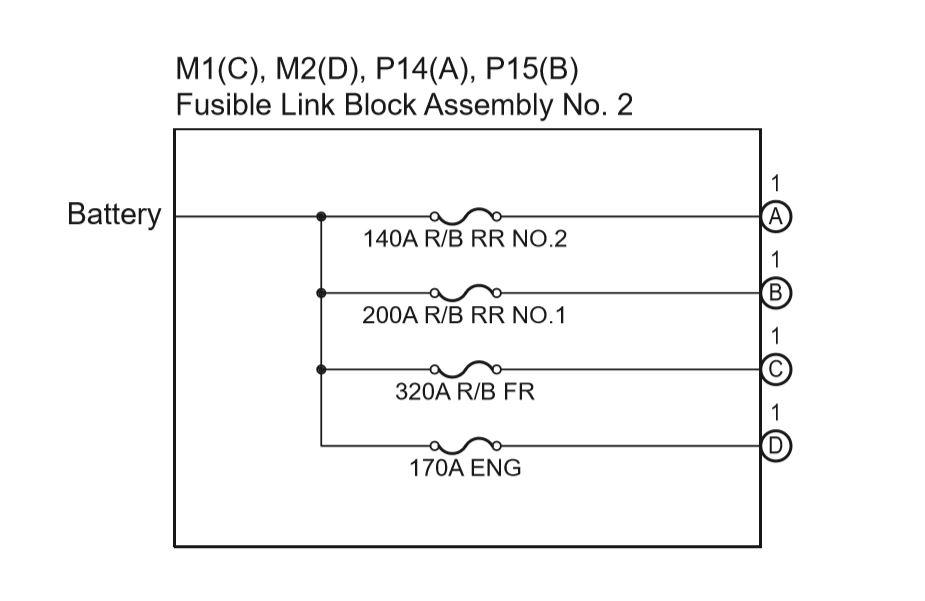

Fig 1: Fusible Link Block Assembly No. 2 Inner Circuit

G00584618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
