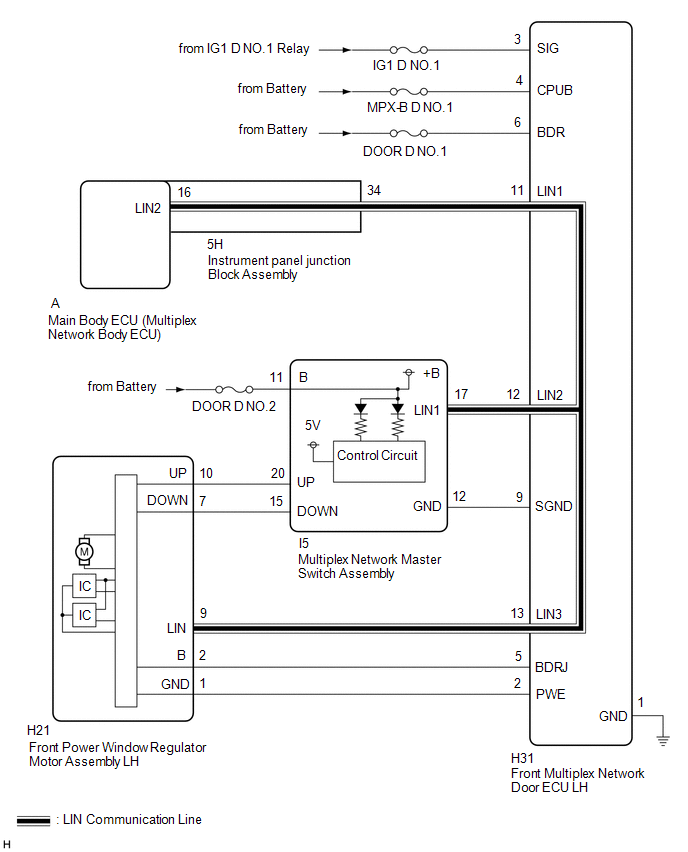

Driver Side Power Window does not Operate with Power Window Master Switch [12/2017 - 10/2023]: Wiring Diagram

GTY788824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
