Components [12/2017 - ]

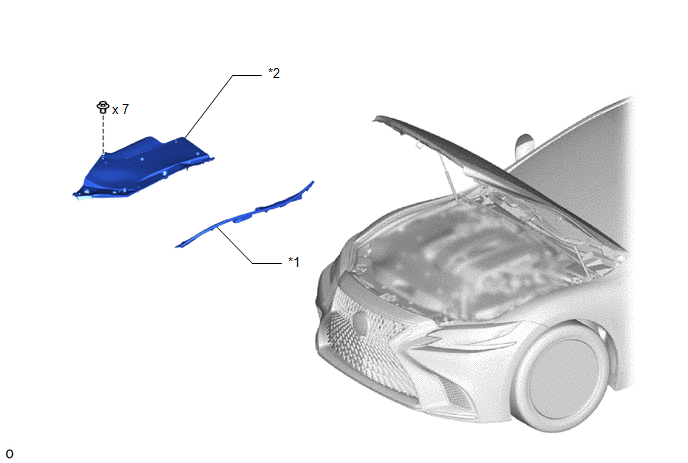

Fig 1: Front Wiper Motor Replacement Components (1 Of 3)
GTY809746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH *2 UPPER RADIATOR SUPPORT SEAL

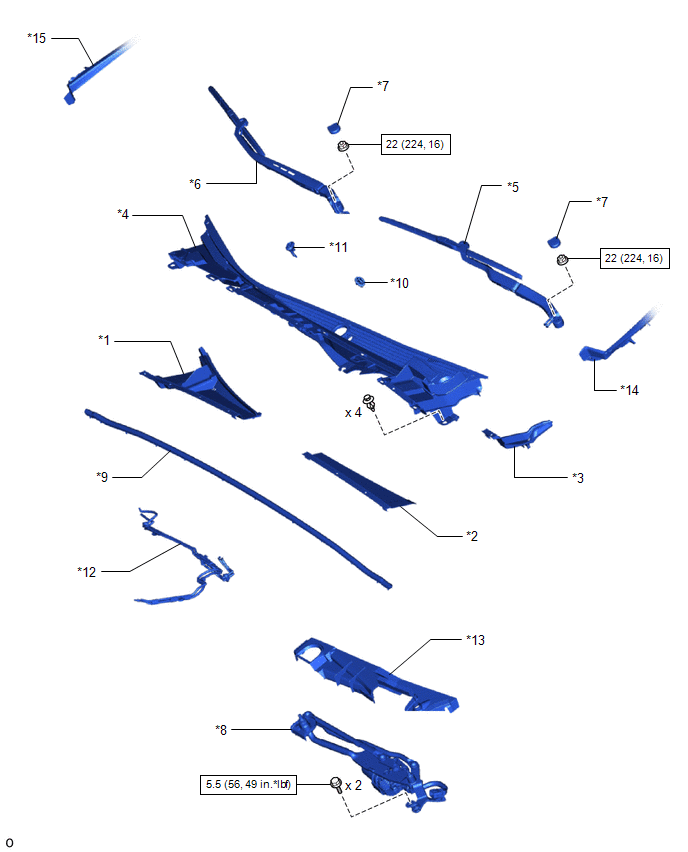

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications (2 Of 3)
GTY814206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER COWL TOP VENTILATOR LOUVER *2 CENTER NO. 2 COWL TOP VENTILATOR LOUVER
*3 COWL TOP VENTILATOR LOUVER REINFORCEMENT *4 COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
*5 FRONT WIPER ARM AND BLADE ASSEMBLY LH *6 FRONT WIPER ARM AND BLADE ASSEMBLY RH
*7 FRONT WIPER ARM HEAD CAP *8 FRONT WIPER MOTOR AND LINK
*9 HOOD TO COWL TOP SEAL *10 NO. 1 WASHER GROMMET SUB-ASSEMBLY
*11 NO. 2 WASHER GROMMET SUB-ASSEMBLY *12 WINDSHIELD WASHER HOSE ASSEMBLY
*13 WIPER MOTOR COVER *14 LOWER WINDSHIELD OUTSIDE MOULDING LH
*15 LOWER WINDSHIELD OUTSIDE MOULDING RH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

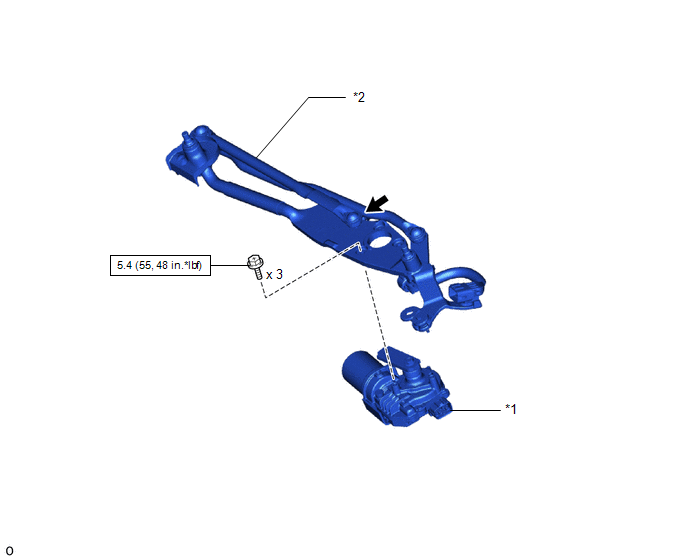

Fig 3: Front Wiper Motor Replacement Components With Torque Specifications (3 Of 3)
GTY821048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 WINDSHIELD WIPER MOTOR ASSEMBLY *2 FRONT WIPER LINK
N*m (kgf*cm, ft.*lbf): Specified torque MP grease
