Installation [12/2017 - 10/2020]: Procedure

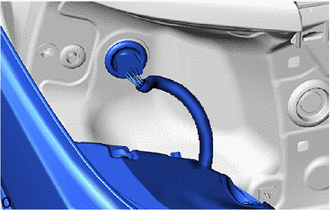

1. Pass the wire harness into the vehicle cabin and install the grommet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

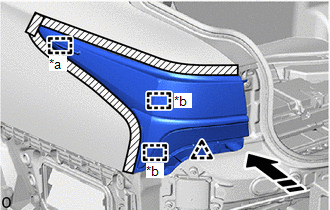

2. Set by aligning the guide of the rear combination light assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Guide
   *b	Pin
   	Install in this Direction

3. Push the rear combination light assembly LH toward the front of the vehicle, and attach the clip and pin.

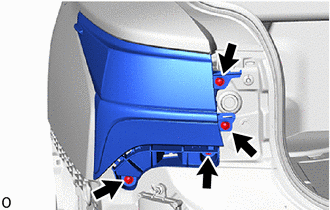

4. Install the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

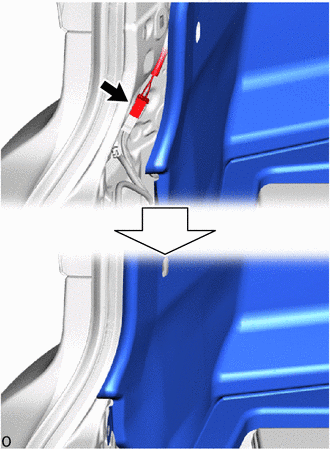

5. Connect the connector and return the luggage compartment trim inner cover LH to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

HINT:

Use the same procedure described for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push
   	Install inn this Direction

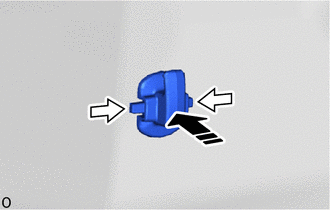

   Set the No. 2 rope hook and push the 2 knobs to install the No. 2 rope hook.

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 12

Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
