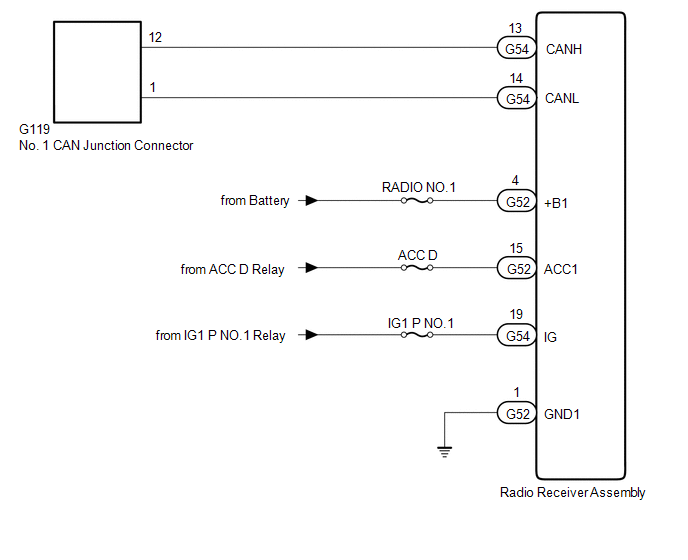

Radio Receiver Assembly Communication Stop Mode [12/2017 - 10/2020]: Wiring Diagram

GTY779312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
