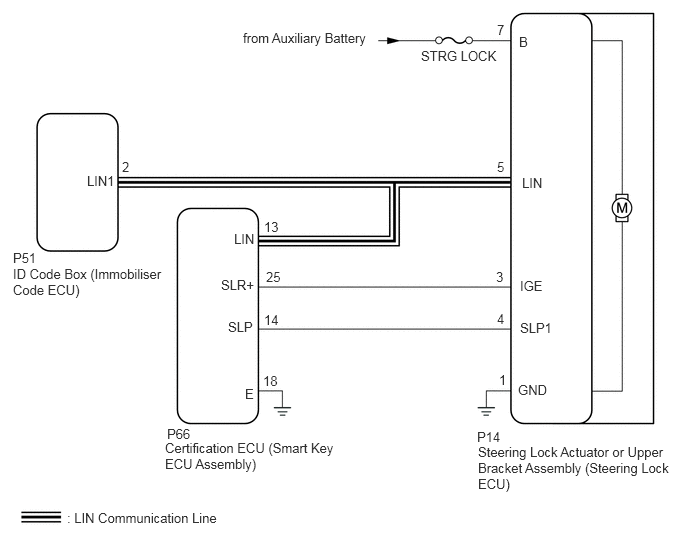

Unable to Unlock Steering Wheel (Hybrid Control System cannot Start) [01/2017 - 05/2023]: Wiring Diagram

GTY835248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
