System Diagram [05/2023 - ]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

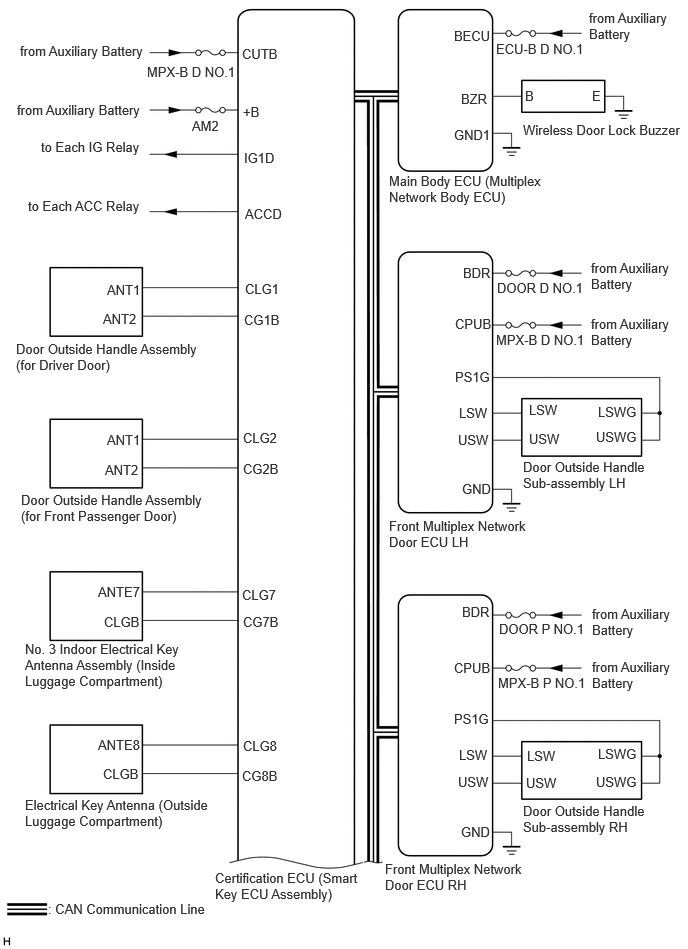

    Fig 1: Smart Access System With Push-Button Start (For Entry Function) Diagram (1 of 2)
    GTY1242393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

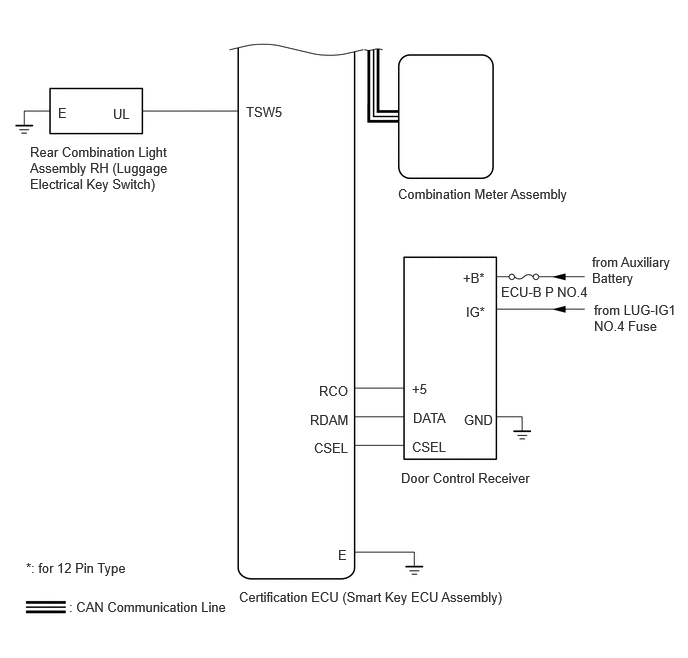

    Fig 2: Smart Access System With Push-Button Start (For Entry Function) Diagram (2 of 2)
    GTY1242529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

    Refer to SYSTEM DIAGRAM [05/2023 - ]

  3. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [05/2023 - ]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [05/2023 - ]
