Components [03/2017 - 09/2018]

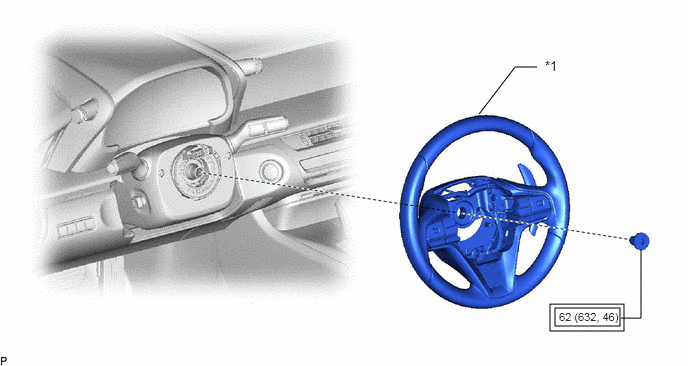

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications [03/2017 - 09/2018] (1 Of 6)

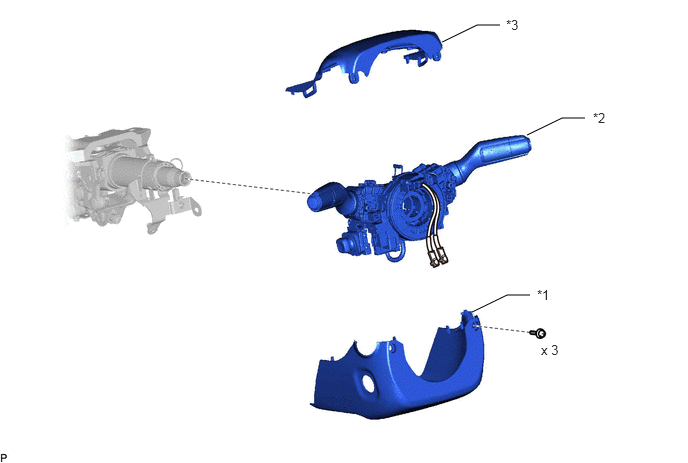

| *1 | STEERING WHEEL ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |
| *1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY | *2 | TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY |
| *3 | UPPER STEERING COLUMN COVER | - | - |

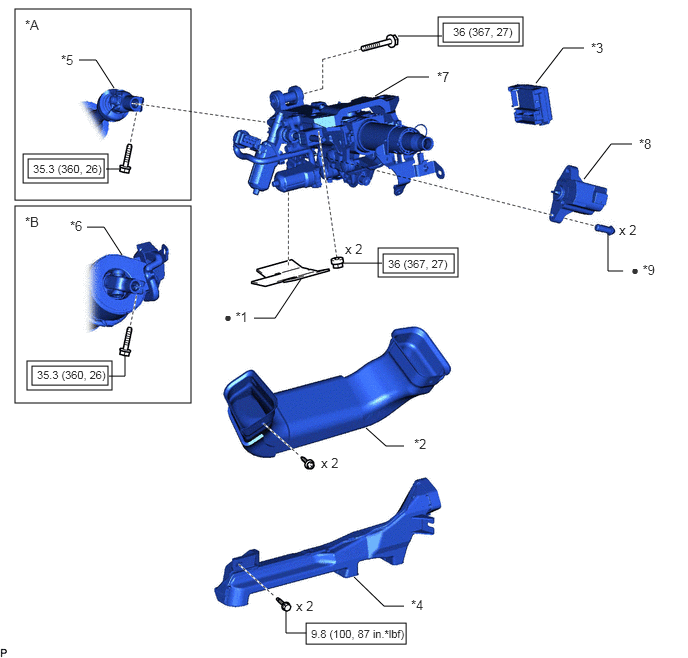

Fig 3: Steering Column Assembly Replacement Components With Torque Specifications [03/2017 - 09/2018] (3 Of 6)
| *A | w/o VGRS | *B | w/ VGRS |
| *1 | CUSHION | *2 | HEATER TO CENTER REGISTER SUB DUCT |
| *3 | MULTIPLEX TILT AND TELESCOPIC ECU | *4 | NO. 2 AIR DUCT |
| *5 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | *6 | STEERING ACTUATOR ASSEMBLY |
| *7 | STEERING COLUMN ASSEMBLY | *8 | STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY |
| *9 | STEERING LOCK SET BOLT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

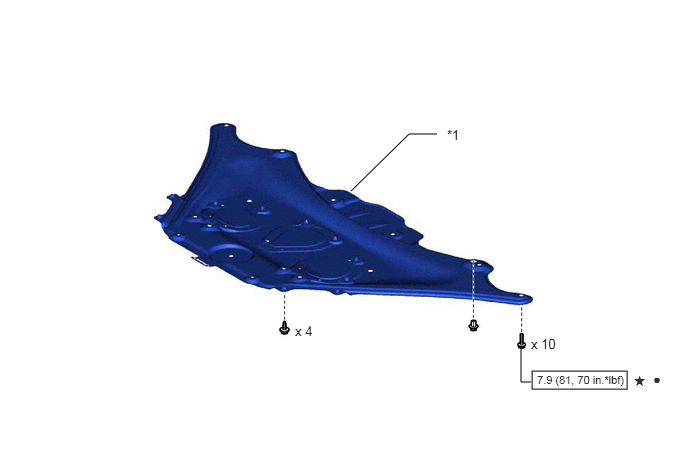

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications [03/2017 - 09/2018] (4 Of 6)
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |

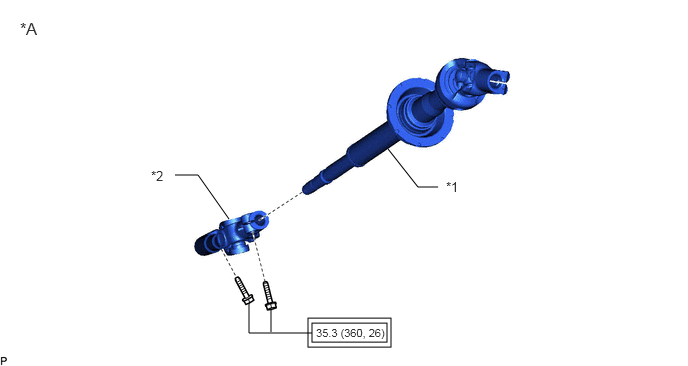

Fig 5: Steering Column Assembly Replacement Components With Torque Specifications [03/2017 - 09/2018] (5 Of 6)
| *A | w/o VGRS | - | - |
| *1 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | *2 | STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |

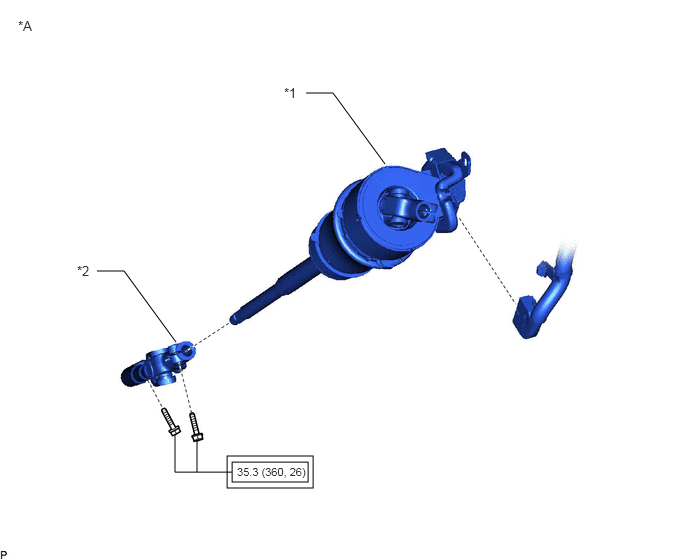

Fig 6: Steering Column Assembly Replacement Components With Torque Specifications [03/2017 - 09/2018] (6 Of 6)
| *A | w/ VGRS | - | - |
| *1 | STEERING ACTUATOR ASSEMBLY | *2 | STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |
