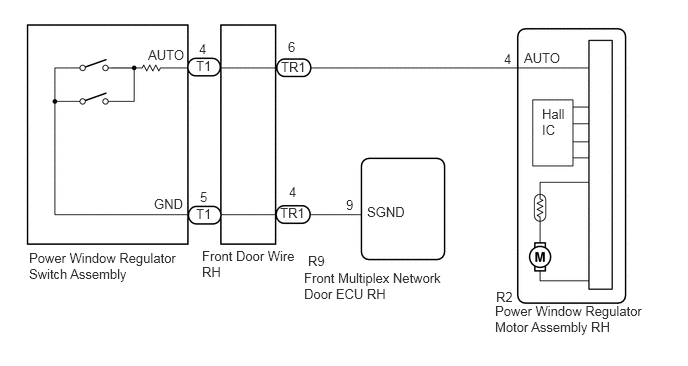

Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [03/2017 - ]: Wiring Diagram

GTY821714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
