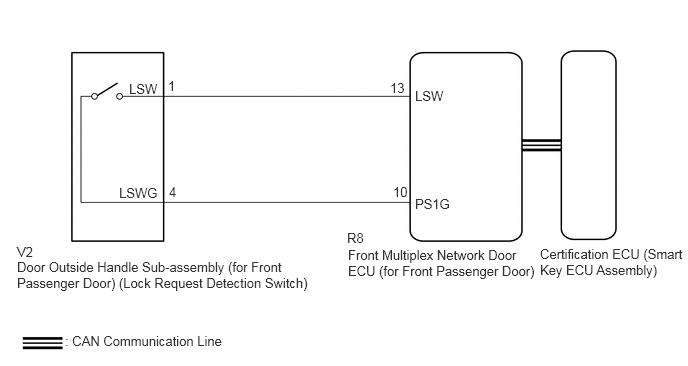

Front Passenger Side Door Entry Lock Function does not Operate [03/2017 - ]: Wiring Diagram

GTY807468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
