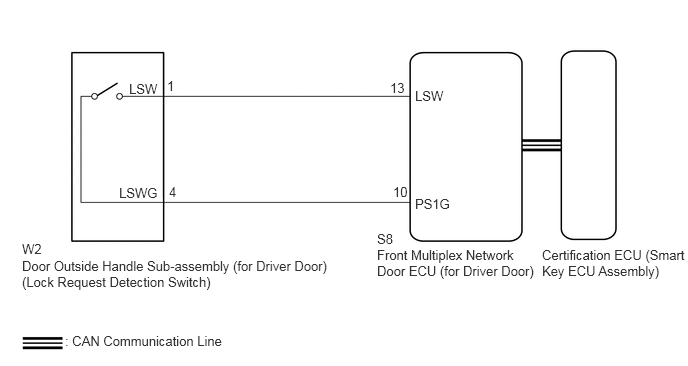

Driver Side Door Entry Lock Function does not Operate [03/2017 - ]: Wiring Diagram

GTY834356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
