Engine Control System (2GR-FKS) - Service Information
>>
CAMSHAFT OIL CONTROL VALVE (for Intake Side of Bank 2)
>>
Components [10/2017 - ]
Components [10/2017 - ]

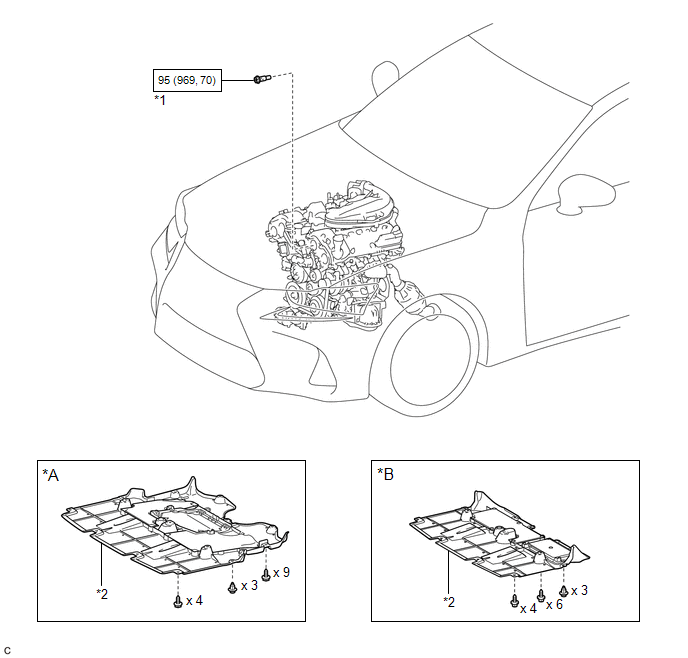

Fig 1: Camshaft Oil Control Valve (For Intake Side Of Bank 2) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for 2WD
*B
for AWD
*1
CAMSHAFT TIMING GEAR BOLT
*2
ENGINE UNDER COVER
N.m (kgf/cm, ft.lbf): Specified torque
-
-
