Installation [10/2016 - 09/2020]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY

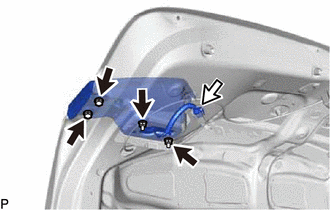

    1. Install the rear light assembly with the 4 nuts.
      GTY638562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

    2. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 12 [04/2013 - 10/2017] , or refer to PROCEDURE - Step 12 [10/2017 - 09/2020]
