Components [04/2013 - 09/2020]

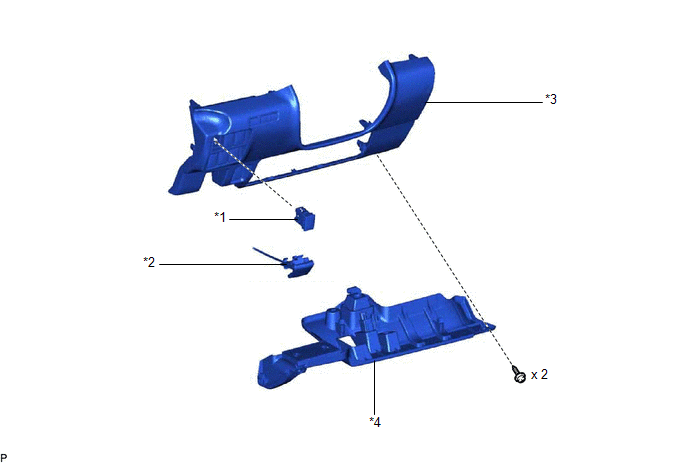

Fig 1: Automatic High Beam Main Switch Replacement Components [04/2013 - 09/2020]
GTY464666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTO HIGH BEAM SWITCH *2 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
