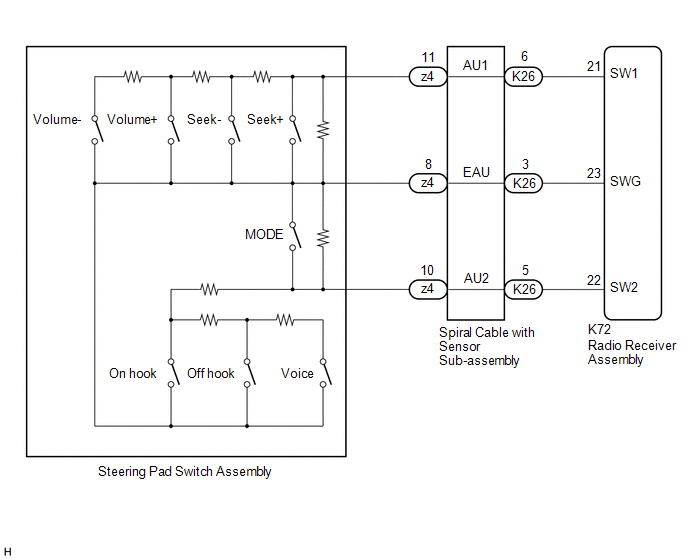

Steering Pad Switch Circuit [04/2013 - 10/2016]: Wiring Diagram

GTY317832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
