Radio Receiver Assembly Communication Stop Mode [04/2013 - 10/2016]: Procedure

  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Navigation System A
      w/o Navigation System B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (RADIO RECEIVER ASSEMBLY BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the K58 radio receiver assembly connector.
      GTY468708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K58-1 (CANH) - K58-2 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      GTY456945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      K58-12 (GND1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) battery terminal.
    3. Measure the voltage according to the value(s) in the table below.
      GTY456946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      K58-15 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      K58-16 (ACC1) - Body ground Engine switch on (ACC) 11 to 14 V
      K58-17 (+B1) - Body ground Always 11 to 14 V

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [04/2013 - 09/2020]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

  4. CHECK FOR OPEN IN CAN BUS LINES (RADIO RECEIVER ASSEMBLY BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the K72 radio receiver assembly connector.
      GTY459574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K72-9 (CANH) - K72-10 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Disconnect the K70 radio receiver assembly connector.
      GTY457625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K70-7 (GND1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    3. Reconnect the cable to the negative (-) battery terminal.
    4. Measure the voltage according to the value(s) in the table below.

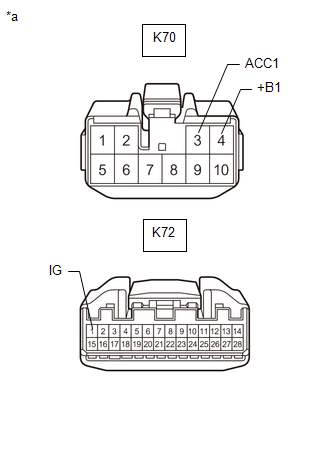

      GTY515509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      K72-1 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      K70-3 (ACC1) - Body ground Engine switch on (ACC) 11 to 14 V
      K70-4 (+B1) - Body ground Always 11 to 14 V

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [04/2013 - 09/2020]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
