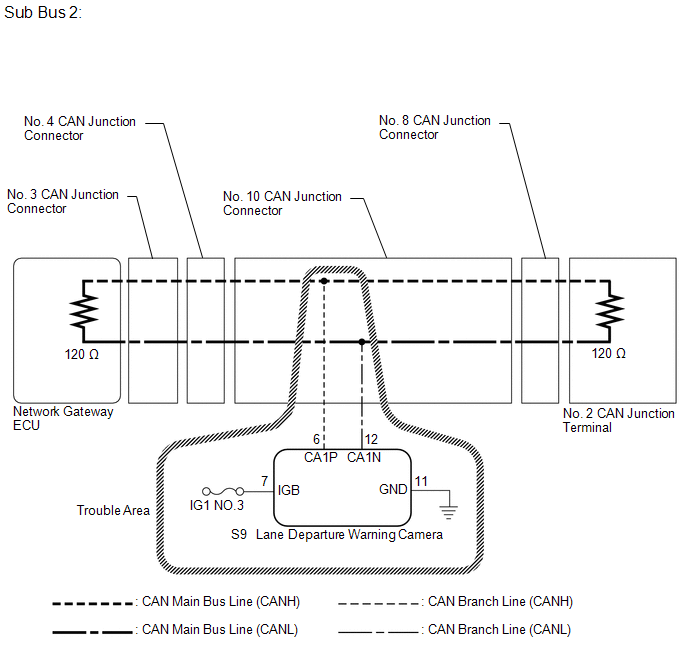

DTC U023A: Lost Communication with Front Camera Module [04/2013 - 06/2014]: Wiring Diagram

GTY462770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
