Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - 08/2019]

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 08/2019]

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  4. REMOVE STEERING HEATER SWITCH

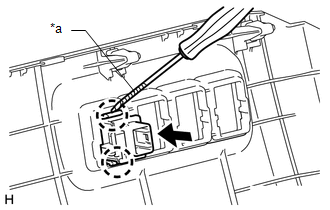

    1. Using a screwdriver, detach the 2 claws and remove the steering heater switch from the lower instrument panel finish panel.
      GTY411226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective tape

      HINT:

      Tape the screwdriver tip before use.
