System Diagram [08/2019 - ]

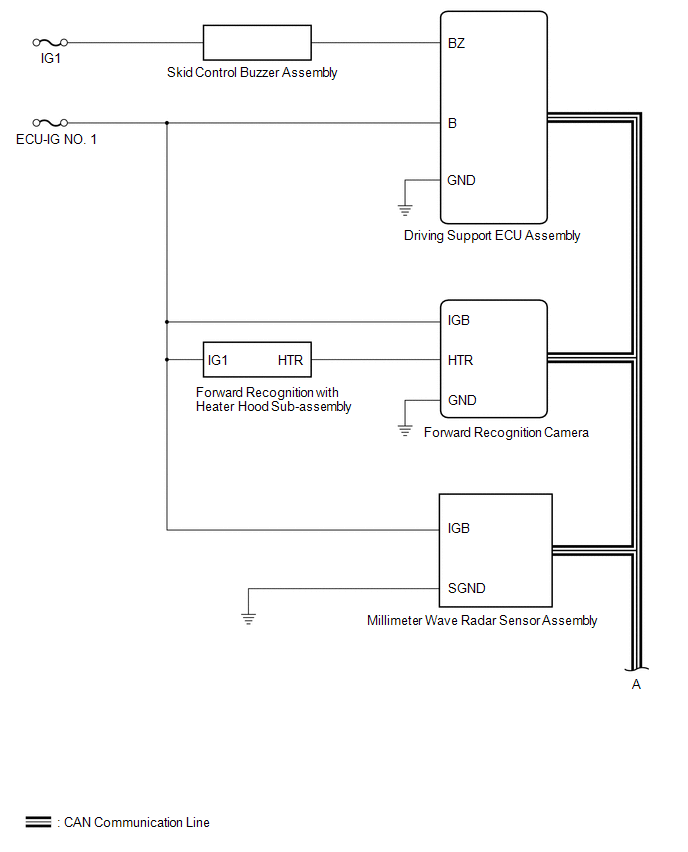

Fig 1: Pre-Collision System Wiring Diagram (1 Of 2)
GTY956874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

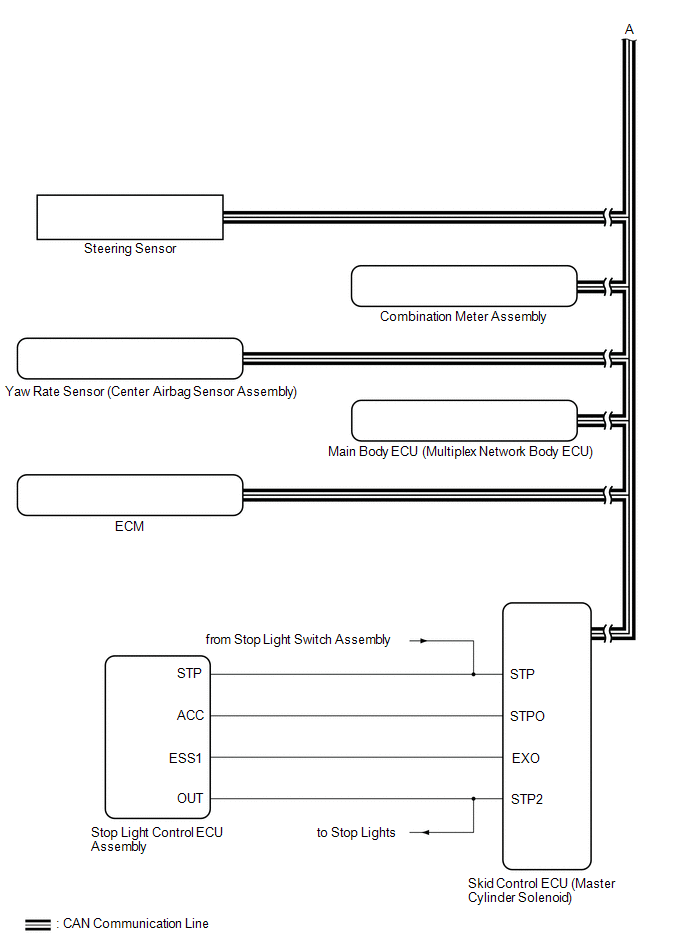

Fig 2: Pre-Collision System Wiring Diagram (2 Of 2)
GTY956597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
