Components [08/2020 - ]

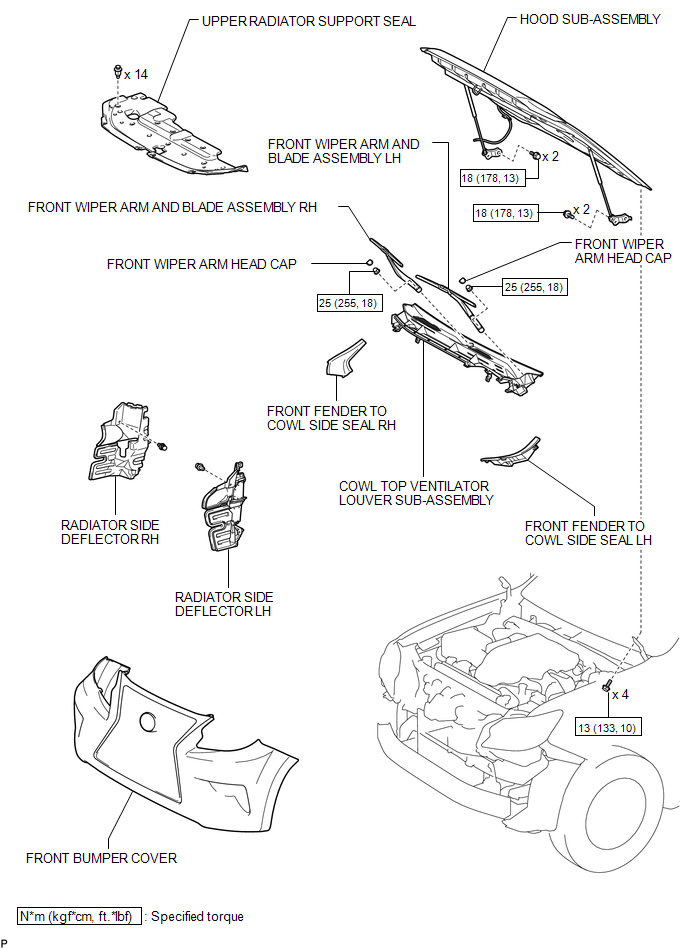

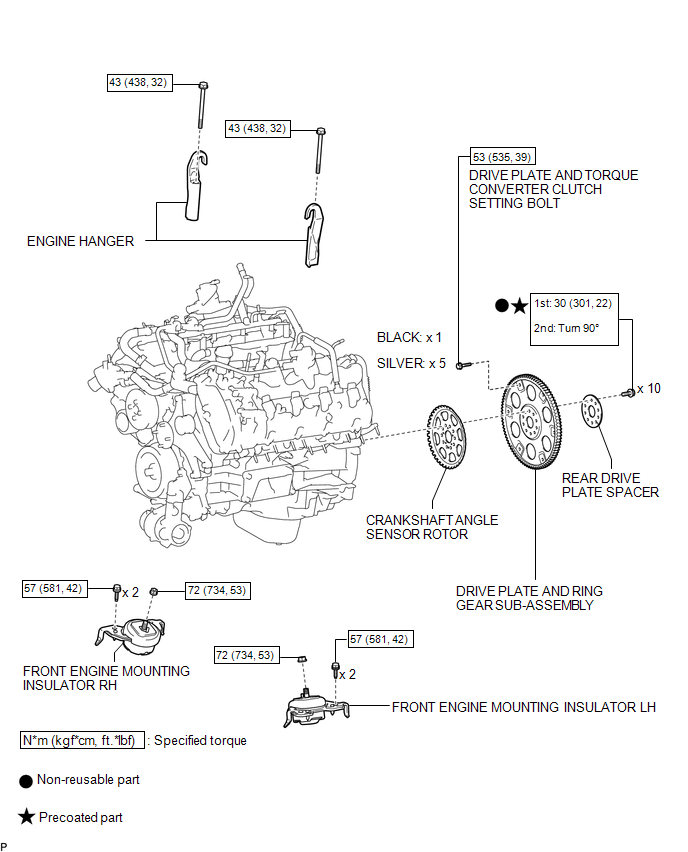

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

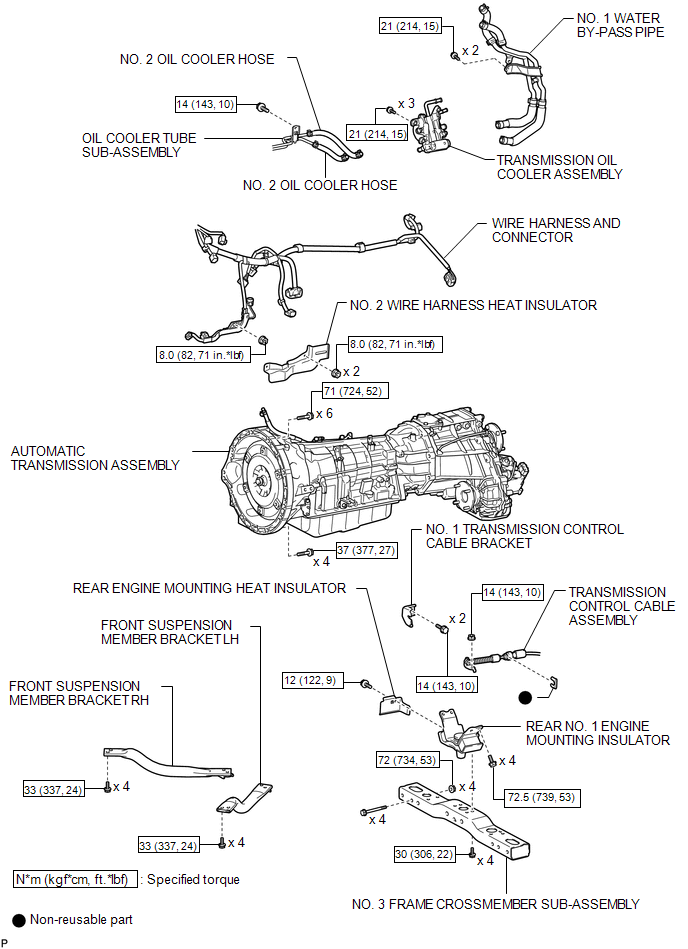

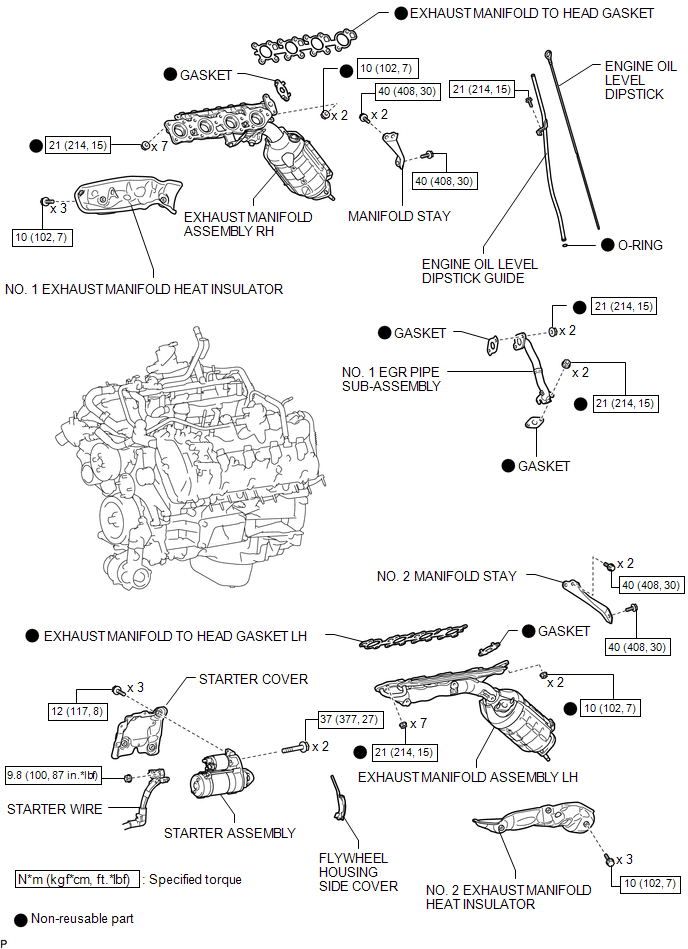

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

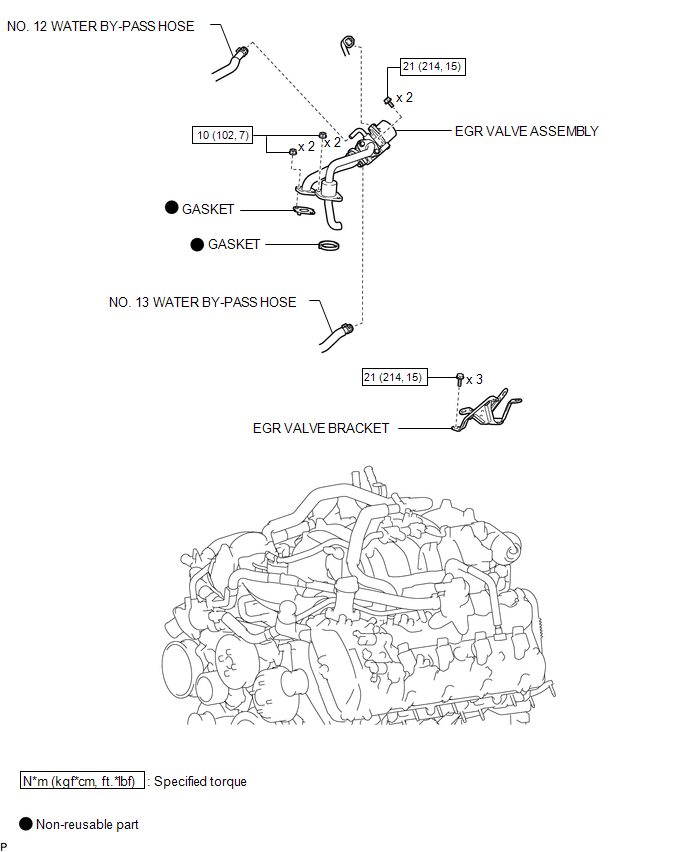

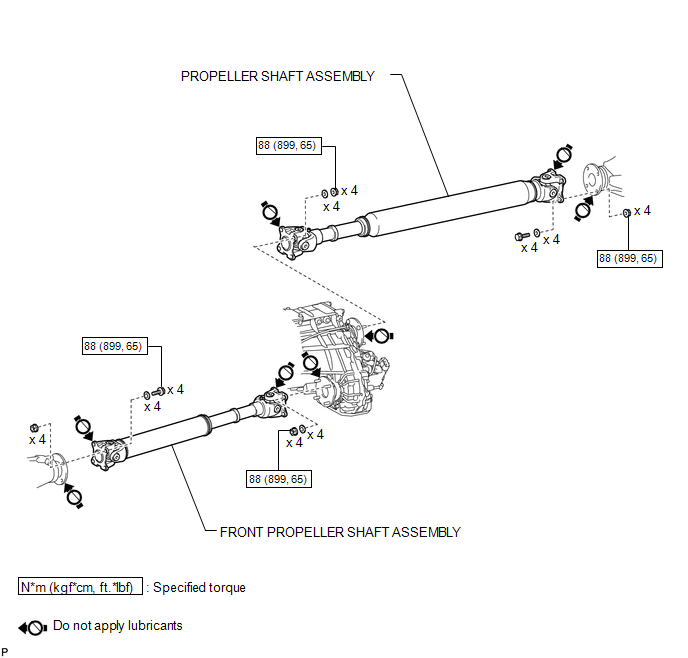

Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

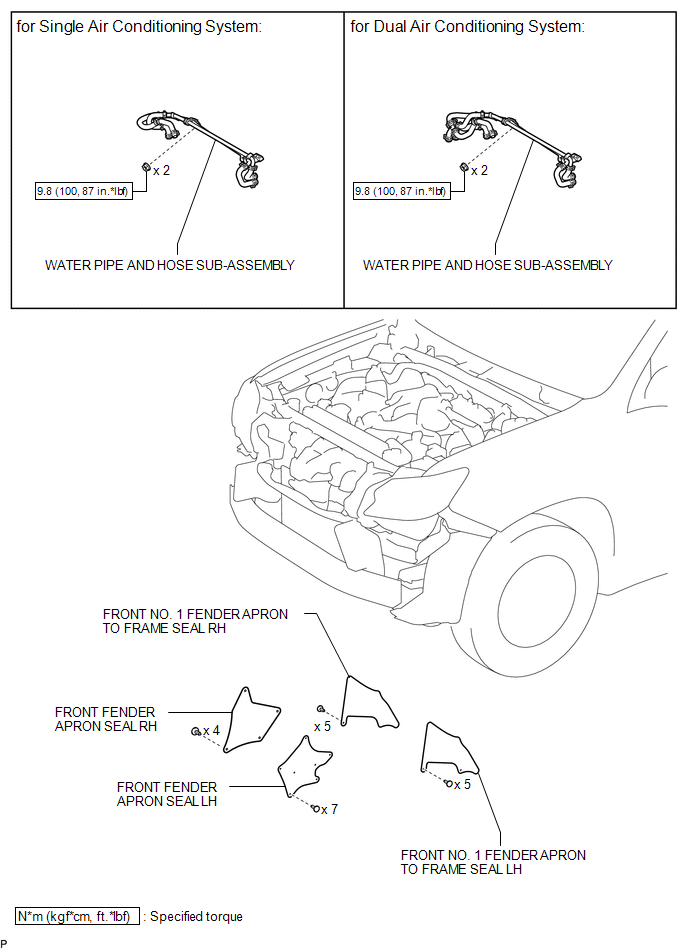

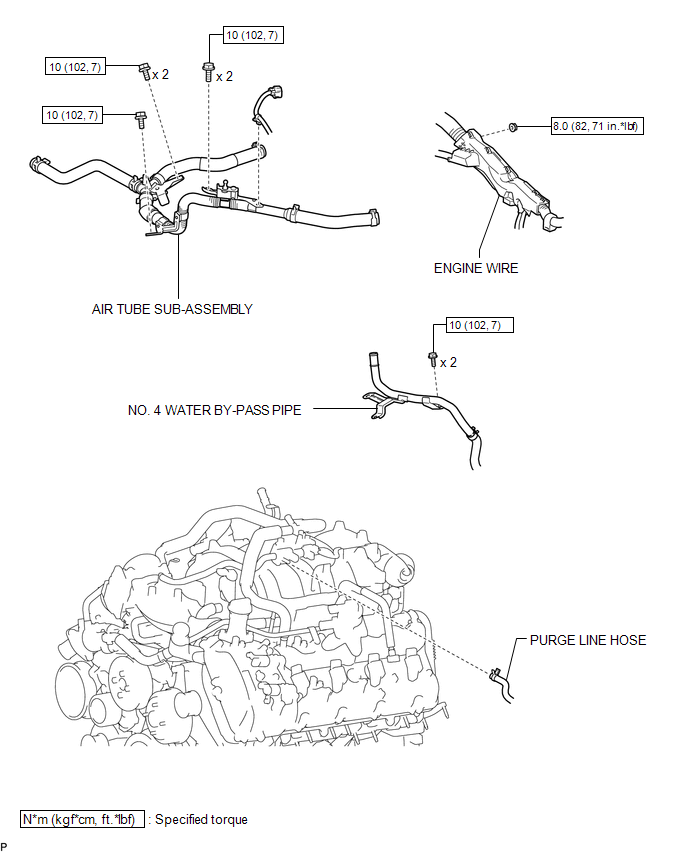

Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

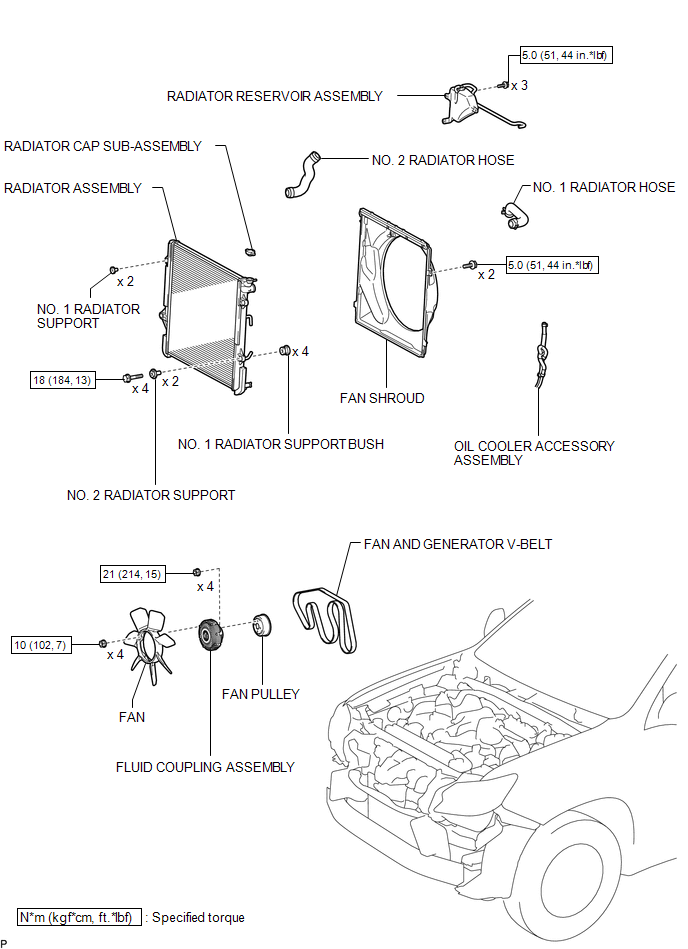

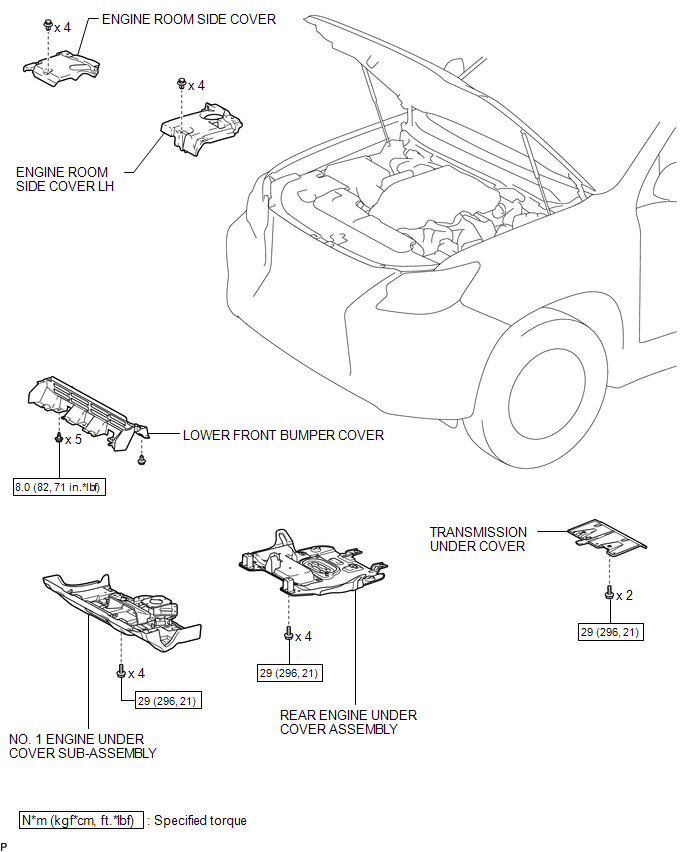

Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

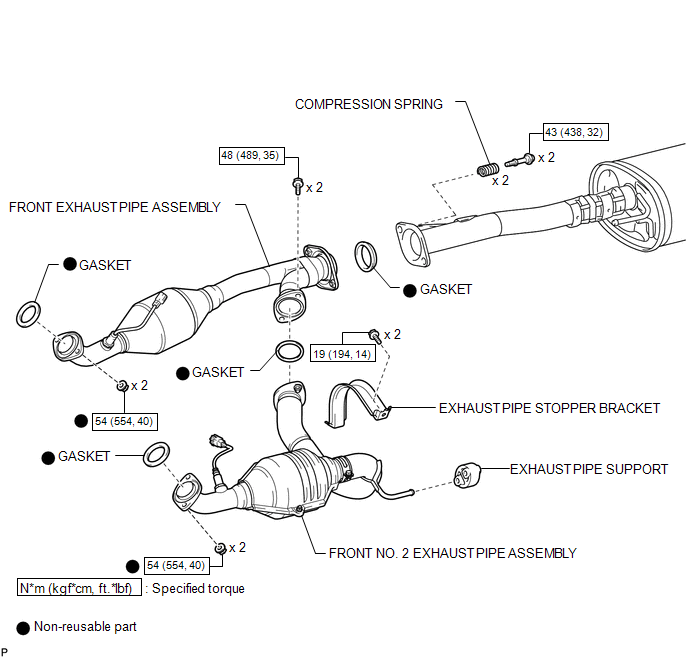

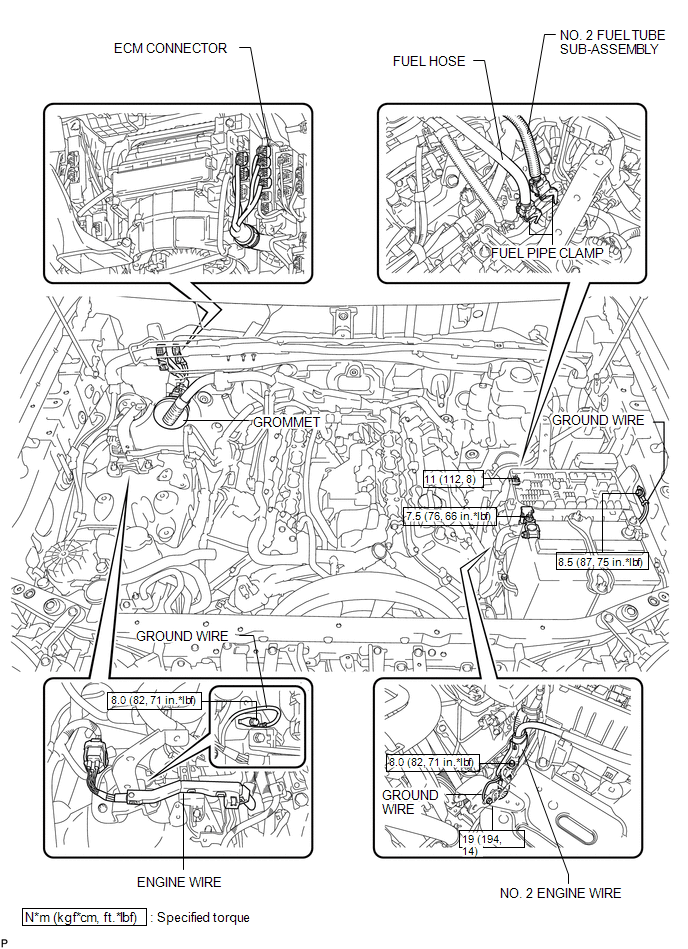

Fig 6: Engine Assembly Replacement Components With Torque Specifications (6 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

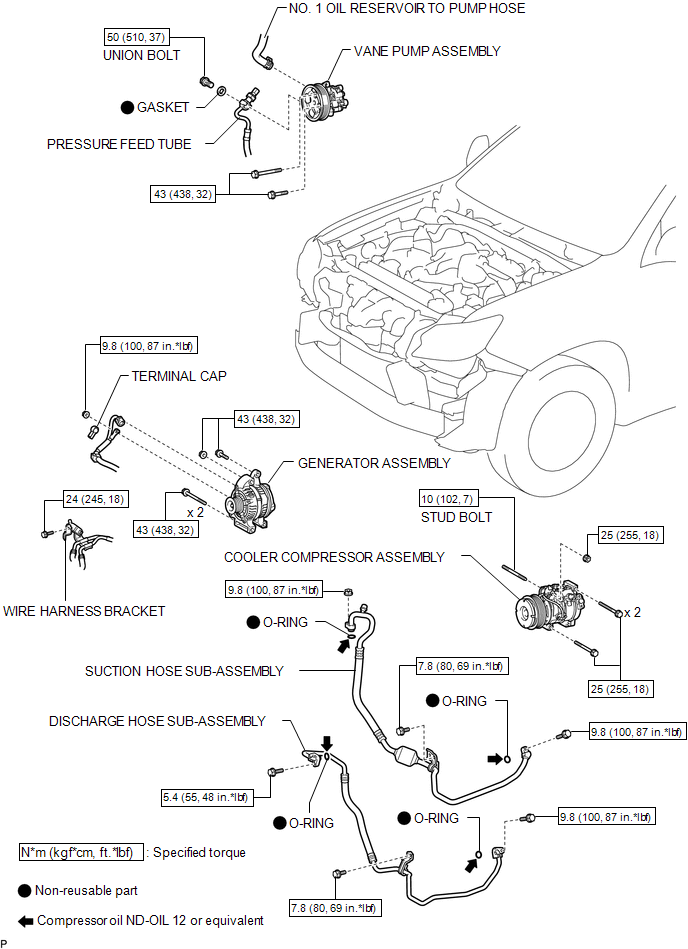

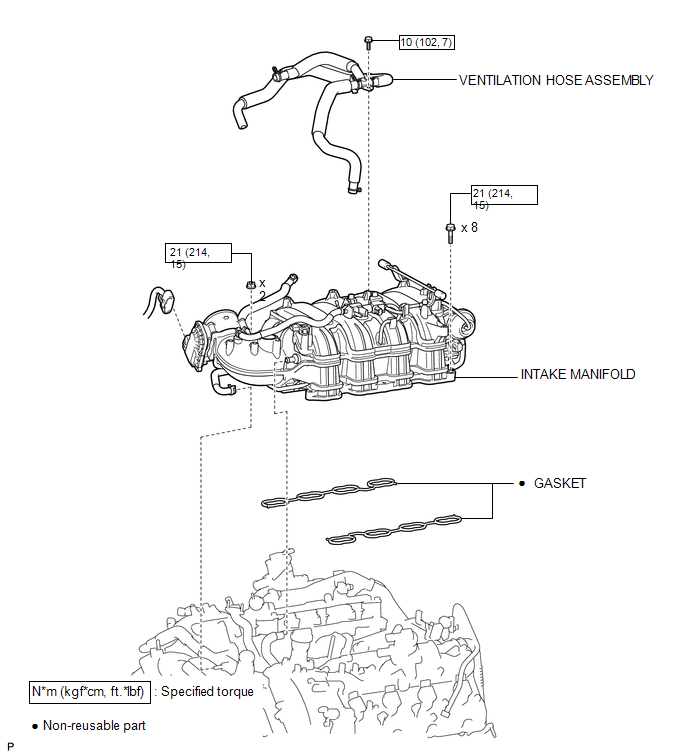

Fig 7: Engine Assembly Replacement Components With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

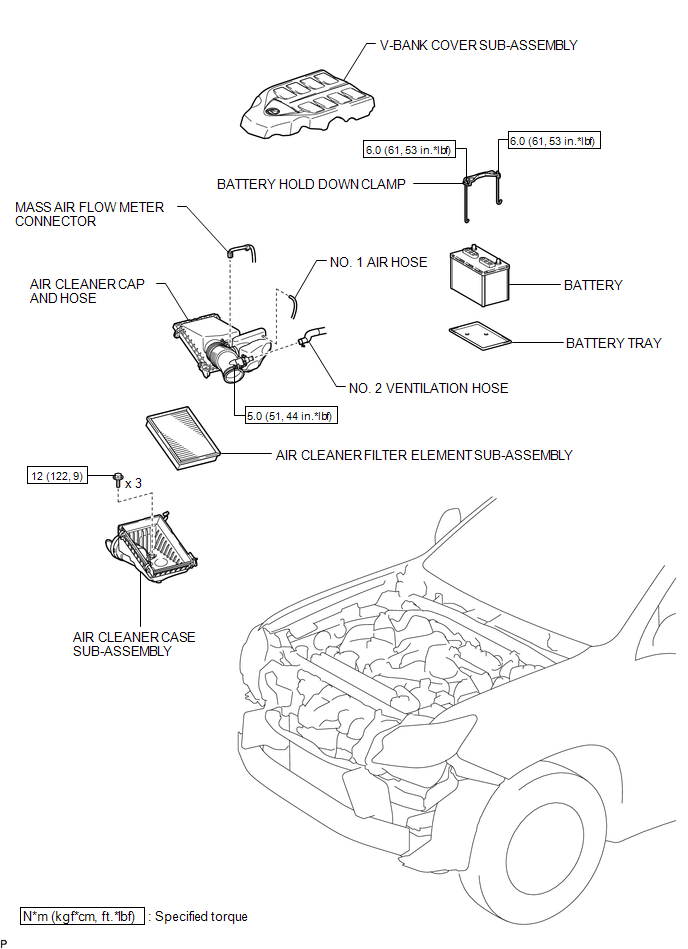

Fig 8: Engine Assembly Replacement Components With Torque Specifications (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Assembly Replacement Components With Torque Specifications (9 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Assembly Replacement Components With Torque Specifications (10 Of 15) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Assembly Replacement Components With Torque Specifications (11 Of 15) [08/2020 - ]

Fig 12: Engine Assembly Replacement Components With Torque Specifications (12 Of 15) [08/2020 - ]

Fig 13: Engine Assembly Replacement Components With Torque Specifications (13 Of 15) [08/2020 - ]

Fig 14: Engine Assembly Replacement Components With Torque Specifications (14 Of 15) [08/2020 - ]

Fig 15: Engine Assembly Replacement Components With Torque Specifications (15 Of 15) [08/2020 - ]
