Installation [08/2015 - ]: Procedure

  1. INSTALL PCV VALVE SUB-ASSEMBLY
    1. Apply a light coat of engine oil to the O-ring.

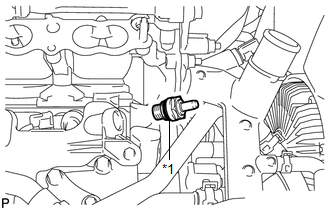

      GTY285091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-ring

      HINT:

      • When reusing the PCV valve, inspect the O-ring.
      • If the O-ring has scratches or cuts, replace the PCV valve.
    2. Using a 22 mm ball joint lock nut wrench, install the PCV valve sub-assembly.

      Torque: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

      NOTE:

      Use the formula to calculate special torque values for situations where ball joint lock nut wrench is combined with a torque wrench (Refer to PRECAUTION [08/2015 - ] ).

  2. CONNECT PCV VALVE HOSE
    1. Connect the PCV valve hose to the valve.

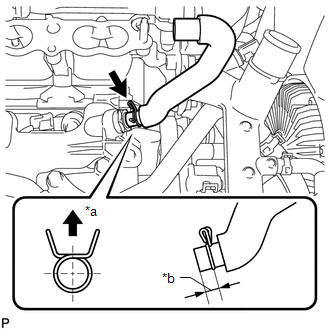

      GTY272540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Secure the hose with the clamp.
      TEXT IN ILLUSTRATION

      *a Upper Side
      *b 5 to 10 mm (0.197 to 0.394 in.)

      HINT:

      Make sure the direction of the hose clamp is as shown in the illustration.

  3. INSTALL NO. 3 ENGINE COVER
    1. Install the No. 3 engine cover.

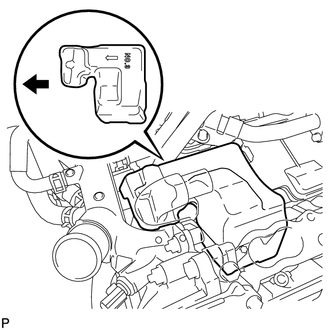

      GTY281817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Engine Front

      HINT:

      Position the No. 3 engine cover so that the arrow mark faces the front of the engine and install it.

  4. INSTALL NO. 4 ENGINE COVER
    1. Install the No. 4 engine cover.

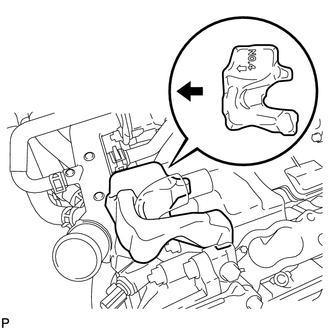

      GTY255387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Engine Front

      HINT:

      Position the No. 4 engine cover so that the arrow mark faces the front of the engine and install it.

  5. INSTALL INTAKE MANIFOLD
    1. Install the intake manifold (Refer to INSTALLATION [08/2015 - ] ).
