Components [08/2015 - ]

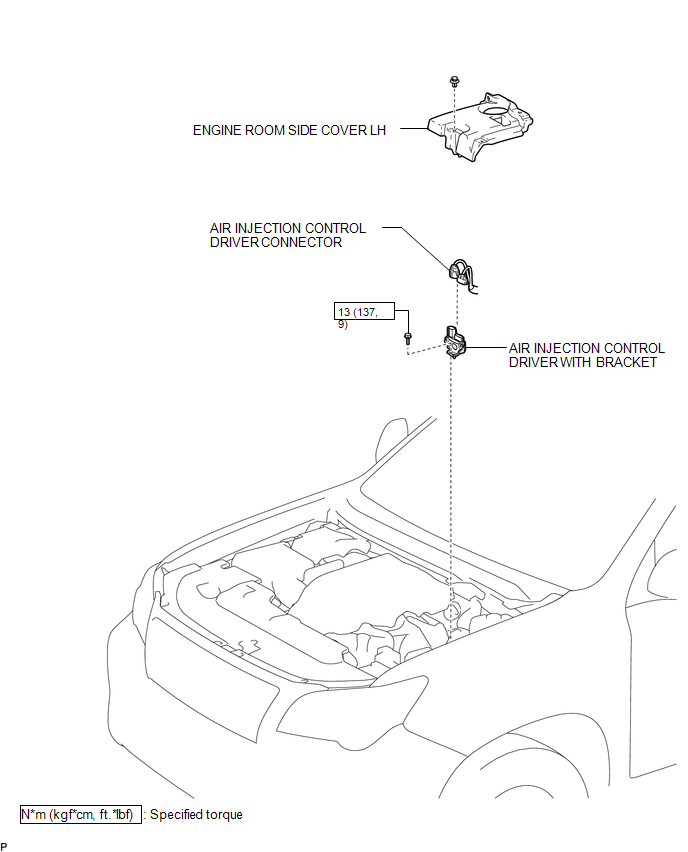

Fig 1: Air Injection Driver Replacement Components With Torque Specifications (1 Of 2)
GTY404095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

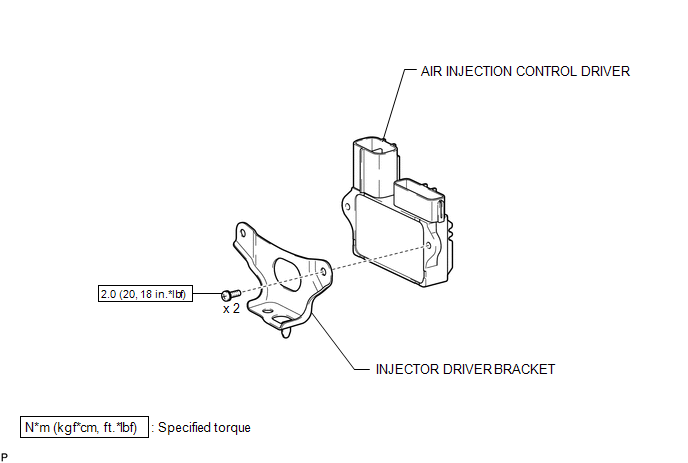

Fig 2: Air Injection Driver Replacement Components With Torque Specifications (2 Of 2)
GTY283792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
