Installation [08/2019 - ]: Procedure

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

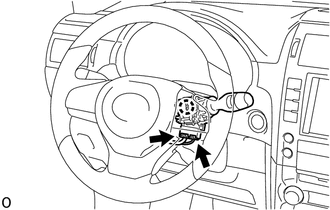

    1. Attach the claw to install the windshield wiper switch assembly.
      GTY950129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL UPPER STEERING COLUMN COVER

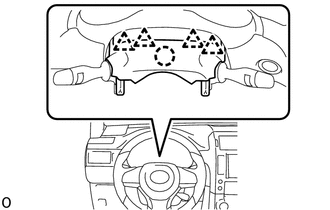

    1. Attach the 4 clips and claw to install the upper steering column cover to the instrument cluster finish panel.
      GTY950127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL LOWER STEERING COLUMN COVER
    1. Attach the 2 claws to install the lower steering column cover.
      GTY950804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

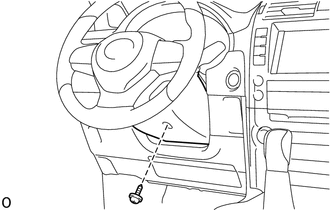

    2. Install the screw.
      GTY950806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

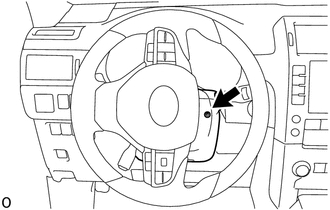

    3. Turn the steering wheel to the right as necessary to install the screw.
      GTY950807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

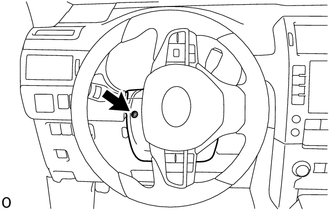

    4. Turn the steering wheel to the left as necessary to install the screw.
      GTY950799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
