System Diagram [08/2018 - 08/2019]

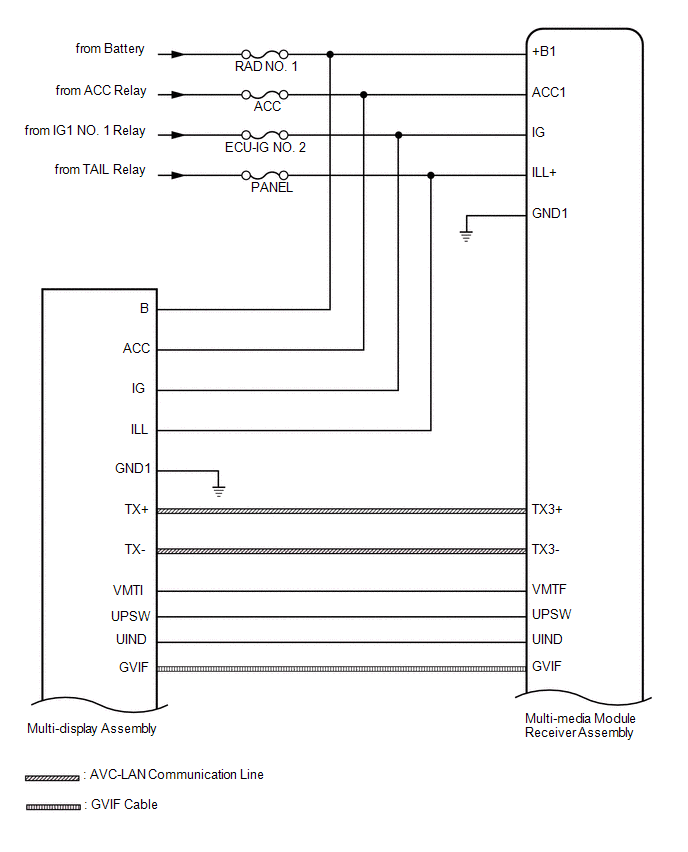

Fig 1: Navigation System Wiring Diagram [08/2018 - ] (1 Of 8)
GTY826144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

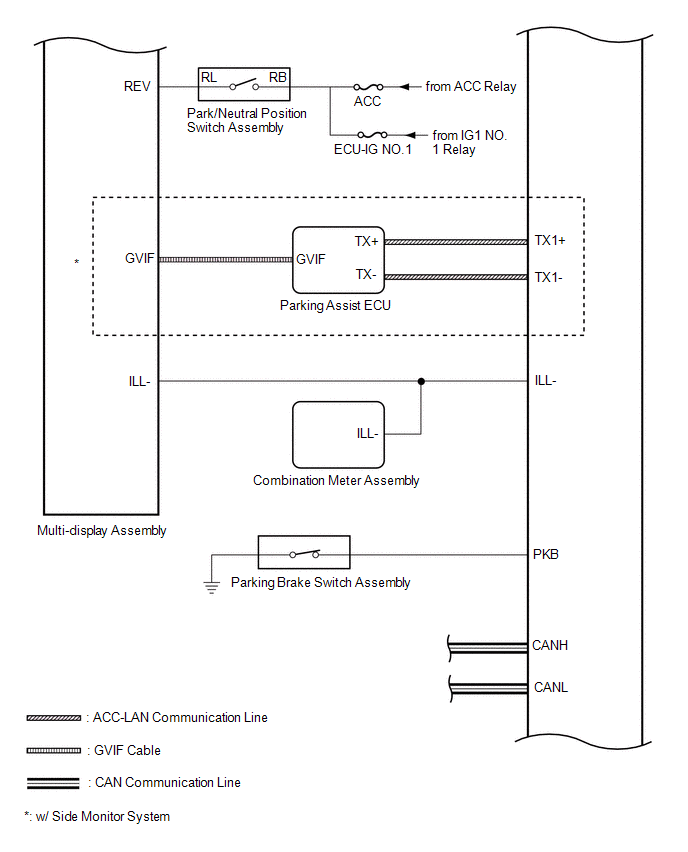

Fig 2: Navigation System Wiring Diagram [08/2018 - ] (2 Of 8)
GTY828473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

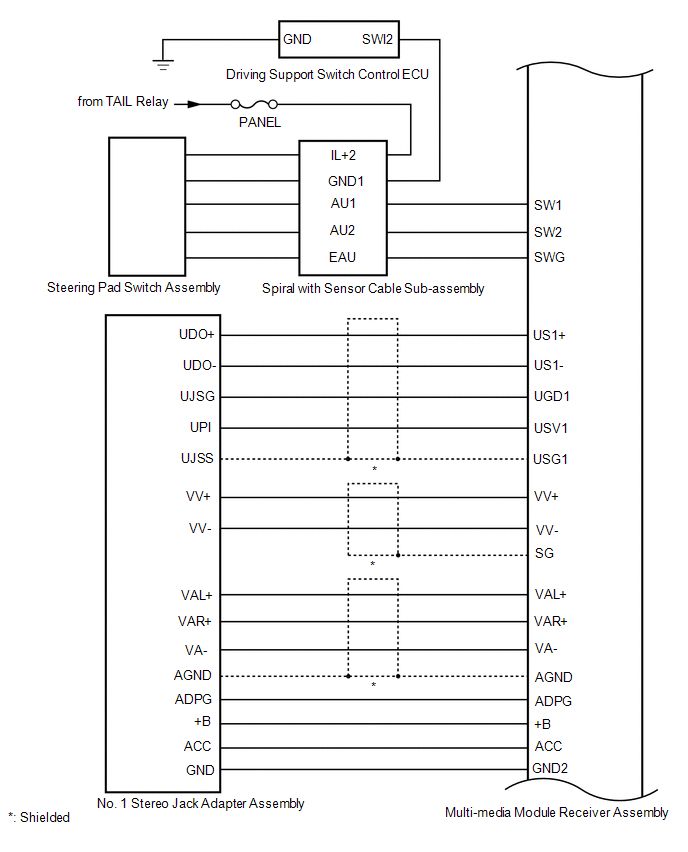

Fig 3: Navigation System Wiring Diagram [08/2018 - ] (3 Of 8)
GTY828694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

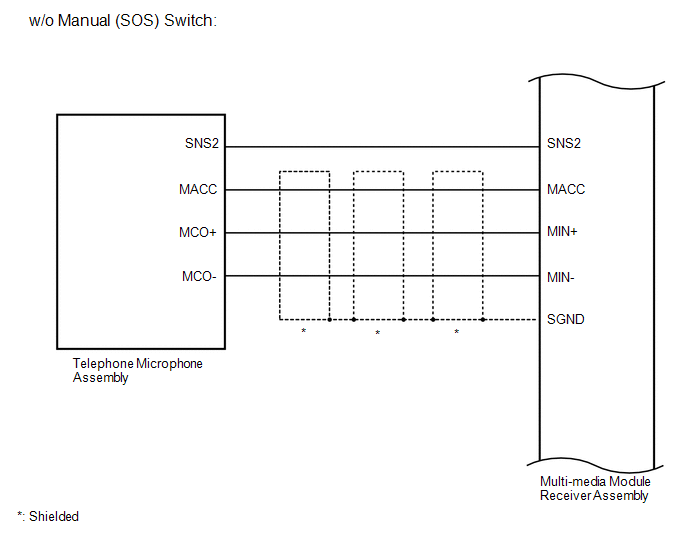

Fig 4: Navigation System Wiring Diagram [08/2018 - ] (4 Of 8)
GTY786932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

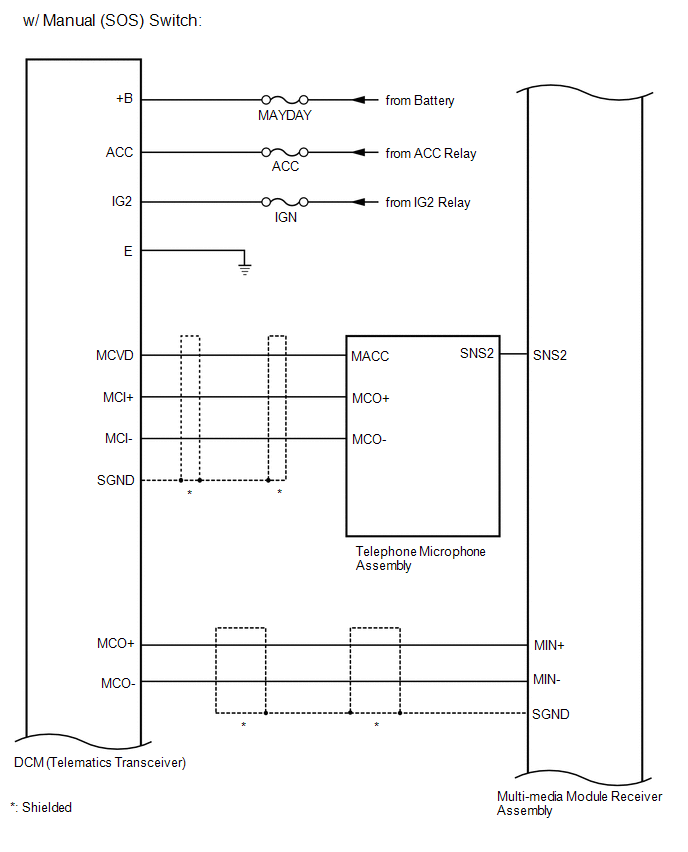

Fig 5: Navigation System Wiring Diagram [08/2018 - ] (5 Of 8)
GTY779660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

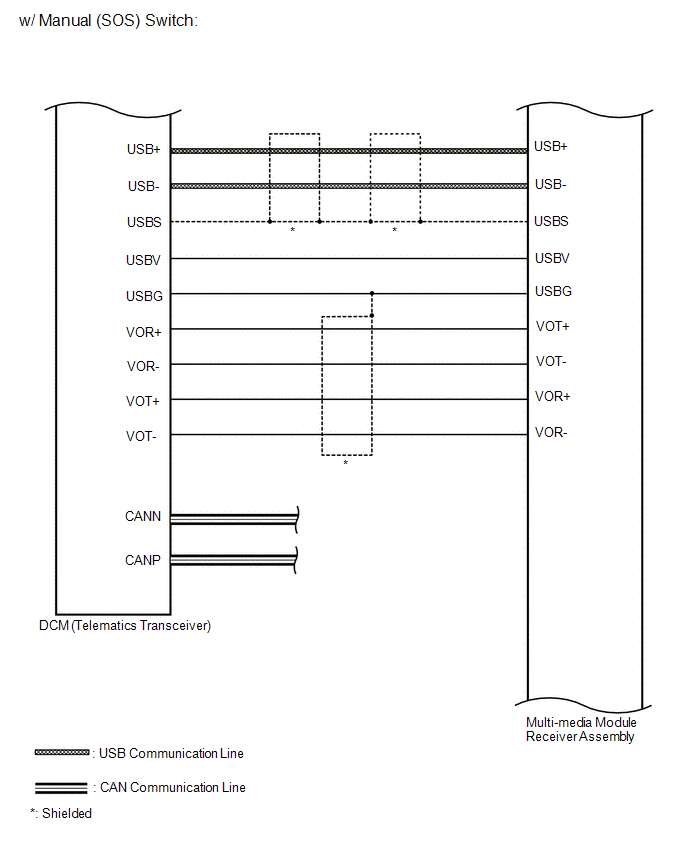

Fig 6: Navigation System Wiring Diagram [08/2018 - ] (6 Of 8)
GTY801951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

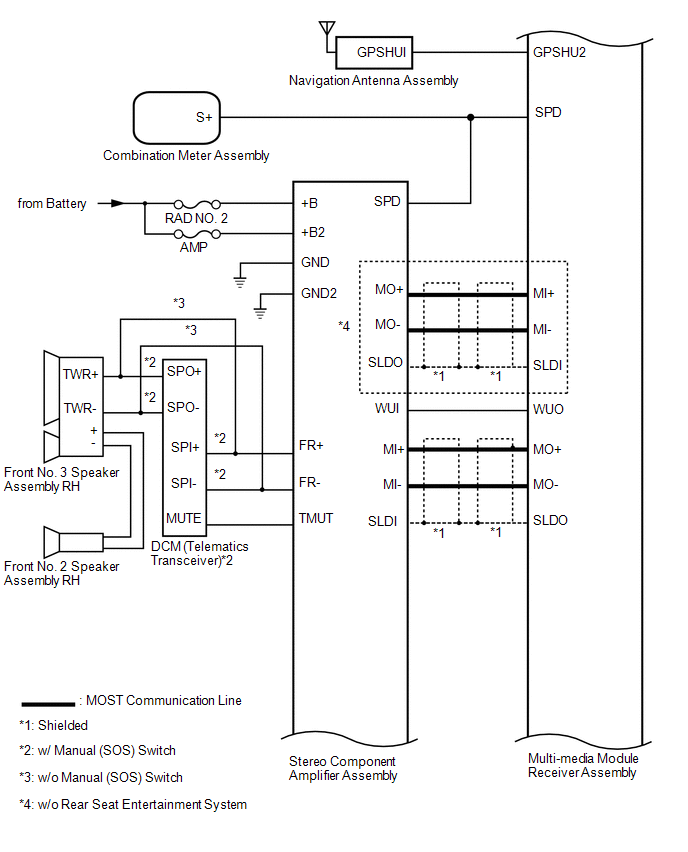

Fig 7: Navigation System Wiring Diagram [08/2018 - ] (7 Of 8)
GTY796814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

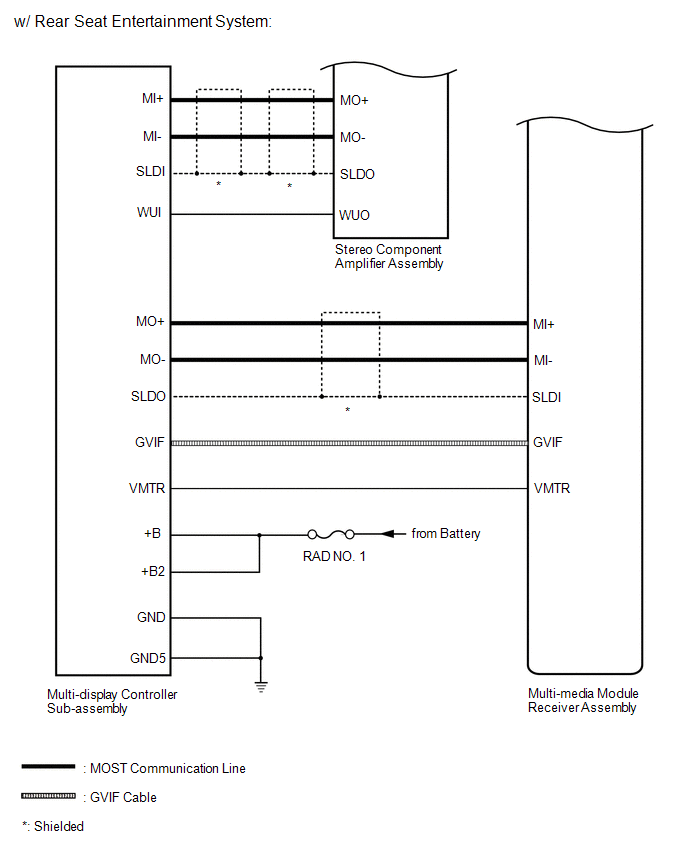

Fig 8: Navigation System Wiring Diagram [08/2018 - ] (8 Of 8)
GTY465816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
