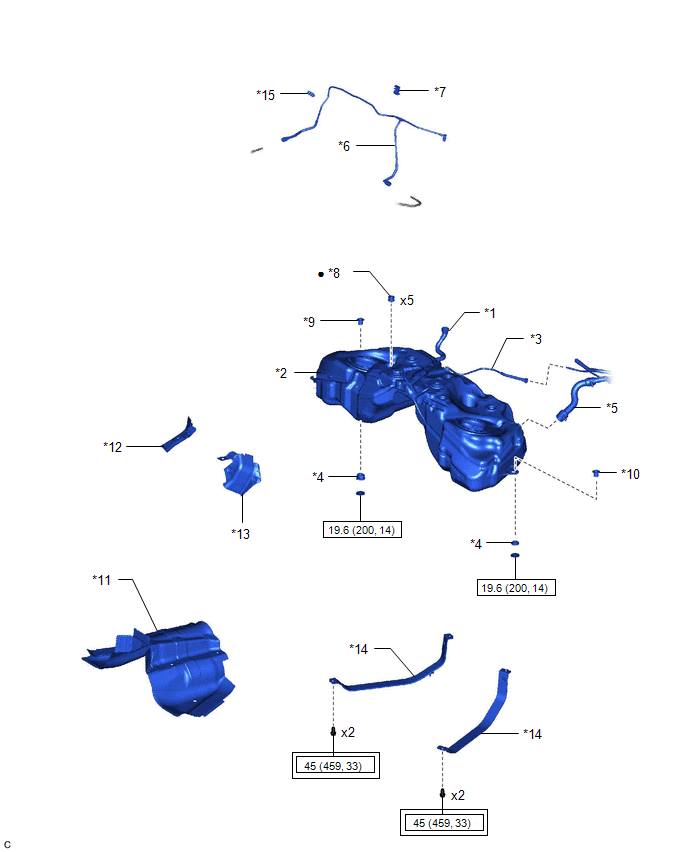

| Callout |
Description |
Callout |
Description |
| *1 |
FUEL CUT OFF VALVE TUBE |
*2 |
FUEL TANK ASSEMBLY |
| *3 |
FUEL TANK BREATHER TUBE |
*4 |
FUEL TANK CUSHION |
| *5 |
FUEL TANK TO FILLER PIPE HOSE |
*6 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *7 |
NO. 5 FUEL TUBE CLAMP |
*8 |
NO. 6 FUEL TANK CUSHION |
| *9 |
FUEL TANK BRACKET |
*10 |
FUEL TANK CUSHION SET |
| *11 |
NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY |
*12 |
NO. 2 FUEL TANK PROTECTOR |
| *13 |
NO. 3 FUEL TANK PROTECTOR |
*14 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY |
| *15 |
NO. 3 FUEL TUBE CLAMP |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
