Installation [10/2015 - ]: Procedure
- INSTALL STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
- Install the steering sliding yoke with shaft sub-assembly with No. 2 steering intermediate shaft assembly to the power steering link assembly.
*a Matchmark NOTE:Align the matchmarks on the steering sliding yoke with shaft sub-assembly and power steering link assembly.
- Install the bolt.
Torque: 35.3 N*m (360 kgf*cm, 26 ft.*lbf)
- Tighten the clamp.
- Install the steering sliding yoke with shaft sub-assembly with No. 2 steering intermediate shaft assembly to the power steering link assembly.
- INSTALL STEERING COLUMN ASSEMBLY
- Install the steering column assembly to the No. 2 steering intermediate shaft assembly.
*a Matchmark NOTE:Align the matchmarks on the steering column assembly and No. 2 steering intermediate shaft assembly.
- Install the steering column assembly with the 4 nuts.
Torque: 25.5 N*m (260 kgf*cm, 19 ft.*lbf)
- Install the bolt.
Torque: 35.3 N*m (360 kgf*cm, 26 ft.*lbf)
- Install the brake pedal return spring to the push rod pin and steering column assembly.
- Connect each connector and engage each wire harness clamp to the steering column assembly.
- Fully tighten the bolt.
Torque: 35.3 N*m (360 kgf*cm, 26 ft.*lbf)
- Install the steering column assembly to the No. 2 steering intermediate shaft assembly.
- INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 69 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 69 [09/2017 - ]
- INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY
- Install the No. 1 air duct sub-assembly with the clip.
- INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [10/2015 - ]

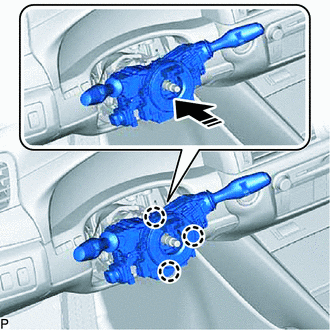

- INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY NOTE:
- Do not replace the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
- Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the engine switch on (IG).
- Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
- INSTALL STEERING COLUMN COVER

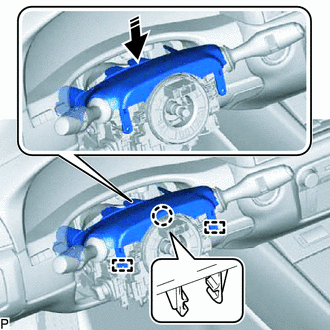

- Engage the claw and guides to install the steering column cover (upper).

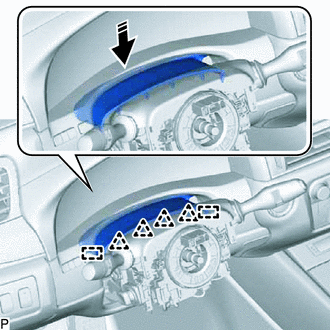

Install in this Direction - Engage the clips and guides to install the meter hood spacer to the steering column cover (upper).

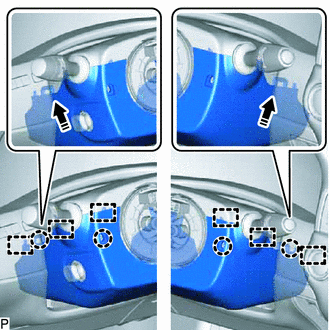

Install in this Direction - Engage the guides and claws to install the steering column cover (lower).
Install in this Direction - Install the 3 screws.
- Engage the claw and guides to install the steering column cover (upper).
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 5 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 5 [09/2017 - ]
- INSTALL STEERING WHEEL ASSEMBLY
- CHECK STEERING WHEEL CENTER POINT
- INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION [10/2015 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter.
Refer to CUSTOMIZE PARAMETERS [10/2015 - ]
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter.
- ADJUST PARKING ASSIST MONITOR SYSTEM
Refer to CALIBRATION [10/2015 - ]
