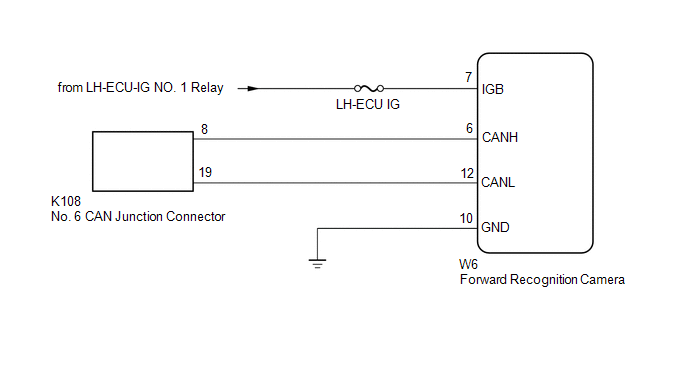

DTC U023A: Lost Communication with Front Camera Module [10/2015 - ]: Wiring Diagram

GTY621672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
