System Diagram [10/2015 - ]

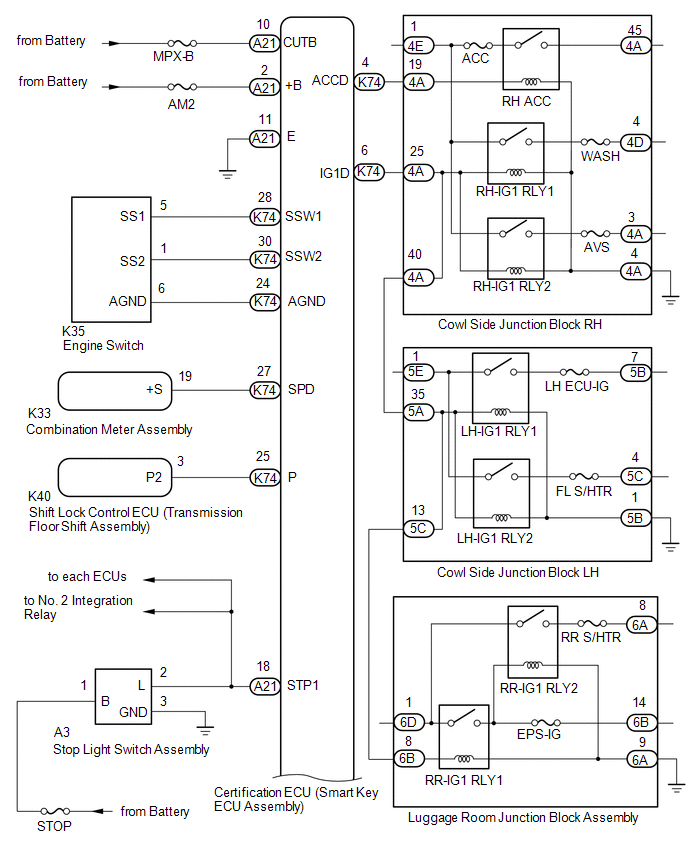

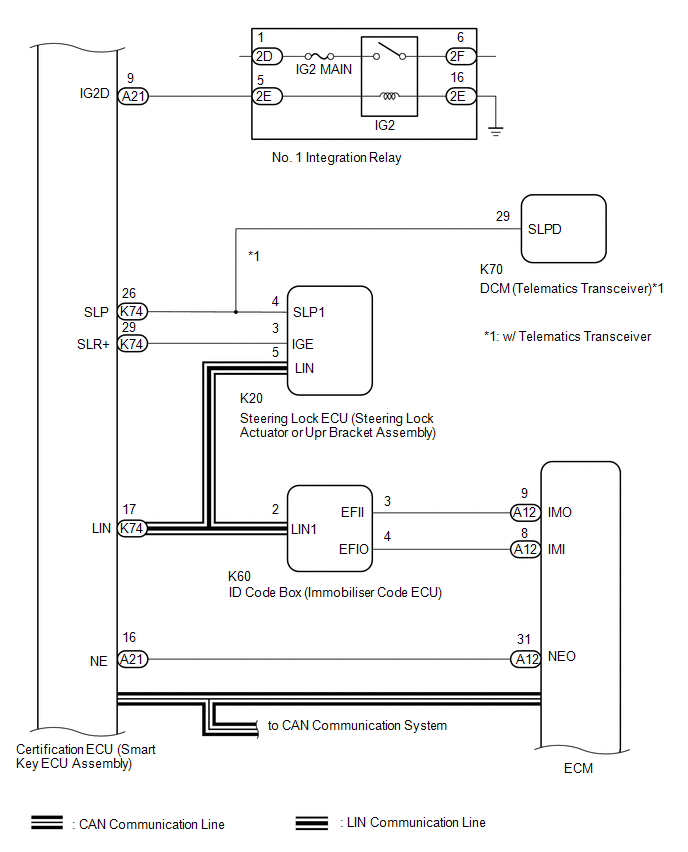

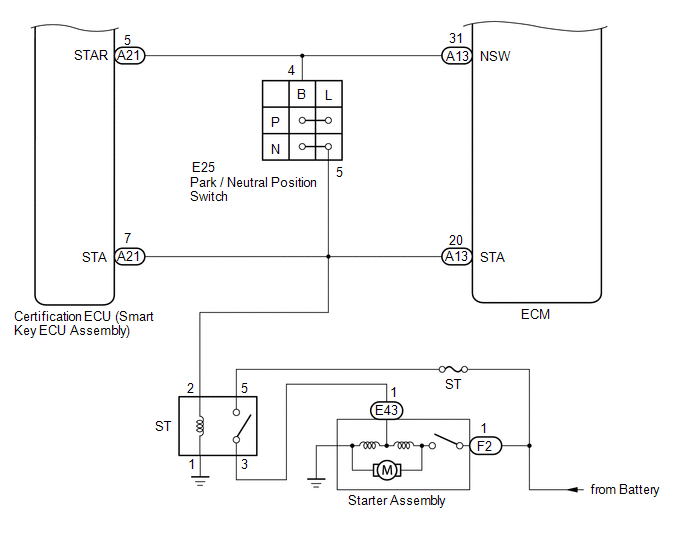

Smart Access System With Push-Button Start (For Start Function) Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Component	Outline
Engine switch Transponder key amplifier	Turns on the power and starts the engine. Contains a built-in transponder key amplifier to start the engine when the key does not operate properly due to a depleted battery or wave interference.
Certification ECU (smart key ECU assembly)	Changes the power source mode by operating the ACC and IG relays. Controls starting by operating the starter relay. Performs key verification. Controls the electrical key antenna (outside), electrical key antenna (indoor) and door lock/unlock sensor. Outputs entry door lock/unlock commands. Outputs steering lock actuator assembly lock/unlock command signals. Outputs immobiliser set/unset commands. Forms the entry function detection area.
ID code box (immobiliser code ECU)	Receives command signals from the certification ECU (smart key ECU assembly) and outputs immobiliser set and unset command signals to the ECM. Records codes for entry verification.
ECM	Outputs a signal indicating that the engine has started to the certification ECU (smart key ECU assembly) when starting the engine.
Steering lock ECU (steering lock actuator or upper bracket assembly)	Receives command signals from the certification ECU (smart key ECU assembly) and activates the steering lock actuator or upper bracket assembly. Records codes for entry verification.
Combination meter assembly	Operates various warnings (messages on the multi-information display, sounding of the buzzer in the combination meter, blinking or illumination of the key warning light) according to the command signals from the certification ECU (smart key ECU assembly). Displays information when the smart access system with push-button start has a malfunction. Outputs a vehicle speed signal to the main body ECU (multiplex network body ECU).
IG, ACC relay	Turns on/off according to the certification ECU (smart key ECU assembly) and provides power to each system.
Stop light switch assembly	Detects that the brake pedal has been depressed (switch is on) and outputs a signal to the certification ECU (smart key ECU assembly).
No. 1 indoor electrical key antenna assembly (front floor) No. 2 indoor electrical key antenna assembly (rear floor) No. 3 indoor electrical key antenna assembly (inside luggage)	Sends the request code from the certification ECU (smart key ECU assembly) and forms the vehicle interior detection area.
Electrical key and TPMS receiver assembly	Receives the smart access system with push-button start code/wireless code sent from the key and sends it to the certification ECU (smart key ECU assembly).
Electrical key transmitter sub-assembly	Sends the ID code upon receiving a request signal.
