Installation [10/2015 - ]: Procedure

  1. INSTALL HEADLIGHT CLEANER CONTROL RELAY

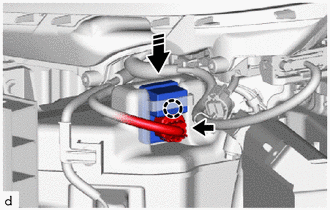

    1. Engage the claw to install the headlight cleaner control relay as shown in the illustration.
      GTY683789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  2. INSTALL ENGINE OIL COOLER AIR INLET DUCT

    See step  2

  3. ADD WINDSHIELD WASHER FLUID

    See step  2

  4. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [10/2015 - 09/2017] , or Refer to INSTALLATION [09/2017 - ]
