Microphone Circuit between Microphone and Navigation Receiver Assembly [10/2015 - ]: Procedure

  1. CHECK MICROPHONE (OPERATION CHECK)
    1. Enter the "Microphone Check" screen. Refer to Check Microphone in Operation Check.

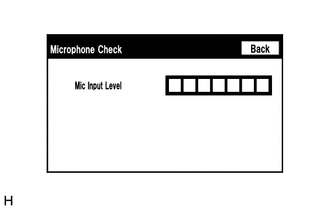

      GTY451926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to OPERATION CHECK [10/2015 - ]

    2. When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
    3. Select the recording switch and perform voice recording.

      HINT:

      • Select the recording switch with the blower motor of the air conditioning system stopped. If an outlet of the air conditioning system is facing the microphone, noise may be recorded.
      • Voice can be recorded for up to 5 seconds.
    4. Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.

      OK

      All check results are normal.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2015 - 09/2017]  , or refer to  REMOVAL [09/2017 - ]

    Result:

    NG

    See step  2

  2. CHECK MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      w/o DCM (Telematics Transceiver) A
      w/ DCM (Telematics Transceiver) B

    Result:

    B

    See step  8

    Result:

    A

    See step  3

  3. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY)
    1. Disconnect the K57 radio receiver assembly connector.
    2. Disconnect the W9 map light assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K57-49 (SNS2) - W9-1 (SNS2) Always Below 1 Ω
      K57-29 (MACC) - W9-4 (MACC) Always Below 1 Ω
      K57-27 (MIN+) - W9-3 (MCO+) Always Below 1 Ω
      K57-48 (MIN-) - W9-2 (MCO-) Always Below 1 Ω
      K57-49 (SNS2) or W9-1 (SNS2) - Body ground Always 10 kΩ or higher
      K57-29 (MACC) or W9-4 (MACC) - Body ground Always 10 kΩ or higher
      K57-27 (MIN+) or W9-3 (MCO+) - Body ground Always 10 kΩ or higher
      K57-48 (MIN-) or W9-2 (MCO-) - Body ground Always 10 kΩ or higher
      K57-28 (SGND) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. INSPECT MAP LIGHT ASSEMBLY
    1. Remove the map light assembly.

      Refer to REMOVAL [10/2015 - ]

    2. Remove the telephone microphone assembly.

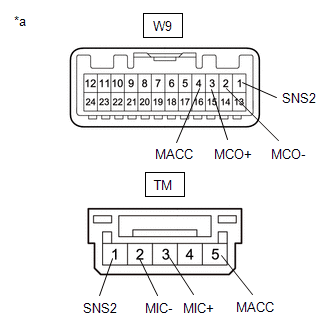

      GTY670290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Map Light Assembly)

      Refer to REMOVAL [10/2015 - ]

    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W9-1 (SNS2) - TM-1 (SNS2) Always Below 1 Ω
      W9-4 (MACC) - TM-5 (MACC) Always Below 1 Ω
      W9-3 (MCO+) - TM-3 (MIC+) Always Below 1 Ω
      W9-2 (MCO-) - TM-2 (MIC-) Always Below 1 Ω
      W9-1 (SNS2) or TM-1 (SNS2) - Body ground Always 10 kΩ or higher
      W9-4 (MACC) or TM-5 (MACC) - Body ground Always 10 kΩ or higher
      W9-3 (MCO+) or TM-3 (MIC+) - Body ground Always 10 kΩ or higher
      W9-2 (MCO-) or TM-2 (MIC-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [10/2015 - ]

    Result:

    OK

    See step  5

  5. INSPECT RADIO RECEIVER ASSEMBLY
    1. Reconnect the K57 radio receiver assembly connector.
    2. Reconnect the W9 telephone microphone assembly connector.
    3. Measure the voltage according to the value (s) in the table below.

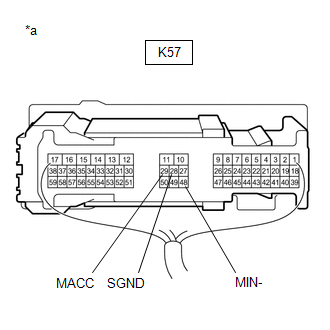

      GTY665319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Radio Receiver Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      K57-29 (MACC) - Body ground Engine switch on (ACC) 4 to 6 V
    4. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K57-28 (SGND) - Body ground Always Below 1 Ω
      K57-48 (MIN-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2015 - 09/2017]  , or refer to  REMOVAL [09/2017 - ]

    Result:

    OK

    See step  6

  6. INSPECT TELEPHONE MICROPHONE ASSEMBLY
    1. Remove the telephone microphone assembly.

      Refer to REMOVAL [10/2015 - ]

    2. Measure the resistance according to the value (s) in the table below.

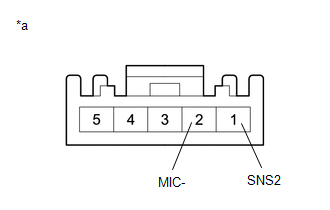

      GTY641881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Telephone Microphone Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (SNS2) - 2 (MIC-) Always Below 1 Ω
    3. Install the telephone microphone assembly.

      Refer to INSTALLATION [10/2015 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE TELEPHONE MICROPHONE ASSEMBLY. Refer to  REMOVAL [10/2015 - ]

    Result:

    OK

    See step  7

  7. INSPECT TELEPHONE MICROPHONE ASSEMBLY
    1. Reconnect the K57 radio receiver assembly connector.
    2. Reconnect the W9 map light assembly connector.
    3. Turn the engine switch on (ACC).
    4. Connect an oscilloscope to terminals 2 (MCO-) and 3 (MCO+) of the W9 map light assembly connector.

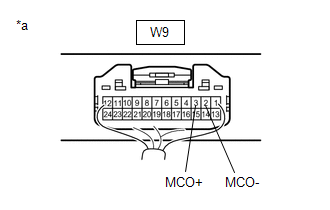

      GTY680649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Map Light Assembly)
    5. Check the waveform of the telephone microphone assembly using the oscilloscope.

      Result

      Result Proceed to
      A waveform synchronized with the voice input to the telephone microphone assembly is output A
      A waveform synchronized with the voice input to the telephone microphone assembly is not output B

    Result:

    A

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2015 - 09/2017]  , or refer to  REMOVAL [09/2017 - ]

    Result:

    B

    REPLACE TELEPHONE MICROPHONE ASSEMBLY. Refer to  REMOVAL [10/2015 - ]

  8. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY)
    1. Disconnect the K57 radio receiver assembly connector.
    2. Disconnect the W9 map light assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K57-49 (SNS2) - W9-1 (SNS2) Always Below 1 Ω
      K57-49 (SNS2) or W9-1 (SNS2) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the K57 radio receiver assembly connector.
    2. Disconnect the K70 DCM (telematics transceiver) connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K57-27 (MIN+) - K70-18 (MCO+) Always Below 1 Ω
      K57-48 (MIN-) - K70-19 (MCO-) Always Below 1 Ω
      K57-27 (MIN+) or K70-18 (MCO+) - Body ground Always 10 kΩ or higher
      K57-48 (MIN-) or K70-19 (MCO-) - Body ground Always 10 kΩ or higher
      K57-28 (SGND) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) - MAP LIGHT ASSEMBLY)
    1. Disconnect the K70 DCM (telematics transceiver) connector.
    2. Disconnect the W9 map light assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K70-33 (MCVD) - W9-4 (MACC) Always Below 1 Ω
      K70-34 (MCI+) - W9-3 (MCO+) Always Below 1 Ω
      K70-35 (MCI-) - W9-2 (MCO-) Always Below 1 Ω
      K70-33 (MCVD) or W9-4 (MACC) - Body ground Always 10 kΩ or higher
      K70-34 (MCI+) or W9-3 (MCO+) - Body ground Always 10 kΩ or higher
      K70-35 (MCI-) or W9-2 (MCO-) - Body ground Always 10 kΩ or higher
      K70-32 (SGND) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. INSPECT MAP LIGHT ASSEMBLY
    1. Remove the map light assembly.

      Refer to REMOVAL [10/2015 - ]

    2. Remove the telephone microphone assembly.
      GTY670290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Map Light Assembly)

      Refer to REMOVAL [10/2015 - ]

    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W9-1 (SNS2) - TM-1 (SNS2) Always Below 1 Ω
      W9-4 (MACC) - TM-5 (MACC) Always Below 1 Ω
      W9-3 (MCO+) - TM-3 (MIC+) Always Below 1 Ω
      W9-2 (MCO-) - TM-2 (MIC-) Always Below 1 Ω
      W9-1 (SNS2) or TM-1 (SNS2) - Body ground Always 10 kΩ or higher
      W9-4 (MACC) or TM-5 (MACC) - Body ground Always 10 kΩ or higher
      W9-3 (MCO+) or TM-3 (MIC+) - Body ground Always 10 kΩ or higher
      W9-2 (MCO-) or TM-2 (MIC-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [10/2015 - ]

    Result:

    OK

    See step  12

  12. INSPECT RADIO RECEIVER ASSEMBLY
    1. Disconnect the K70 DCM (telematics transceiver) connector.
    2. Reconnect the K57 radio receiver assembly connector.

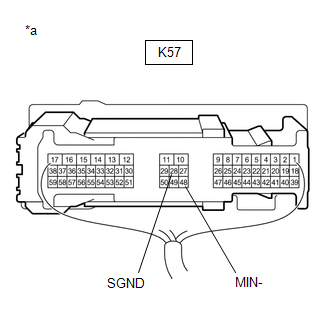

      GTY665318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Radio Receiver Assembly)
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K57-28 (SGND) - Body ground Always Below 1 Ω
      K57-48 (MIN-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2015 - 09/2017]  , or refer to  REMOVAL [09/2017 - ]

    Result:

    OK

    See step  13

  13. INSPECT DCM (TELEMATICS TRANSCEIVER)
    1. Reconnect the DCM (telematics transceiver) connector.
    2. Measure the voltage according to the value (s) in the table below.

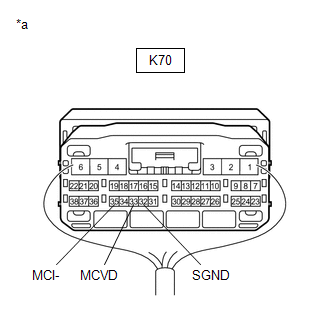

      GTY654902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (DCM (Telematics Transceiver))

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      K70-33 (MCVD) - Body ground Engine switch on (ACC) 4 to 6 V
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K70-35 (MCI-) - Body ground Always Below 1 Ω
      K70-32 (SGND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE DCM (TELEMATICS TRANSCEIVER). Refer to  REMOVAL [10/2015 - 09/2017]  , or refer to  REMOVAL [09/2017 - ]

    Result:

    OK

    See step  14

  14. INSPECT TELEPHONE MICROPHONE ASSEMBLY
    1. Remove the telephone microphone assembly.

      Refer to REMOVAL [10/2015 - ]

    2. Measure the resistance according to the value (s) in the table below.
      GTY641881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Telephone Microphone Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (SNS2) - 2 (MIC-) Always Below 1 Ω
    3. Install the telephone microphone assembly.

      Refer to INSTALLATION [10/2015 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE TELEPHONE MICROPHONE ASSEMBLY. Refer to  REMOVAL [10/2015 - ]

    Result:

    OK

    See step  15

  15. INSPECT TELEPHONE MICROPHONE ASSEMBLY
    1. Reconnect the K57 radio receiver assembly connector.
    2. Reconnect the W9 map light assembly connector.
    3. Reconnect the K70 DCM (telematics transceiver) connector.
    4. Turn the engine switch on (ACC).
    5. Connect an oscilloscope to terminals 2 (MCO-) and 3 (MCO+) of the W9 map light assembly connector.
      GTY680649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Map Light Assembly)
    6. Check the waveform of the telephone microphone assembly using the oscilloscope.

      Result

      Result Proceed to
      A waveform synchronized with the voice input to the telephone microphone assembly is output A
      A waveform synchronized with the voice input to the telephone microphone assembly is not output B

    Result:

    A

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2015 - 09/2017]  , or refer to  REMOVAL [09/2017 - ]

    Result:

    B

    REPLACE TELEPHONE MICROPHONE ASSEMBLY. Refer to  REMOVAL [10/2015 - ]

scientia non olet · About LEMON Manuals
