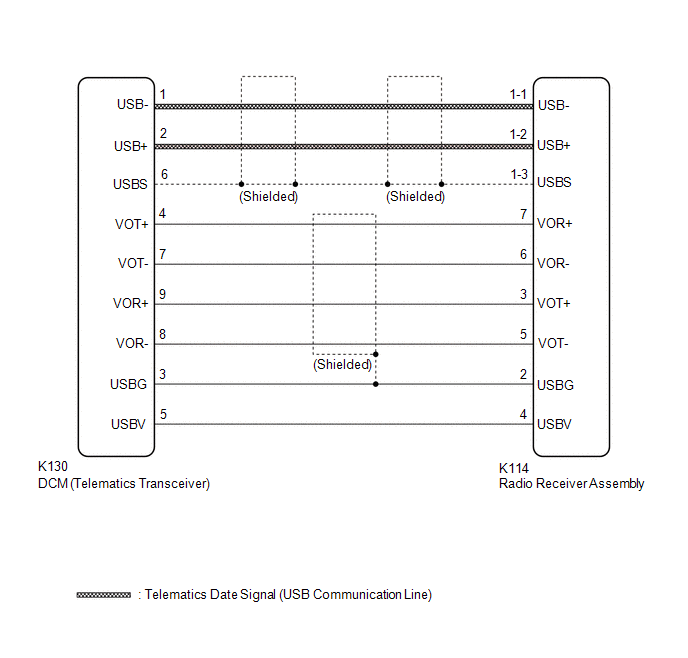

DCM Data Signal Circuit between Navigation ECU and DCM [09/2017 - ]: Wiring Diagram

GTY775112

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
