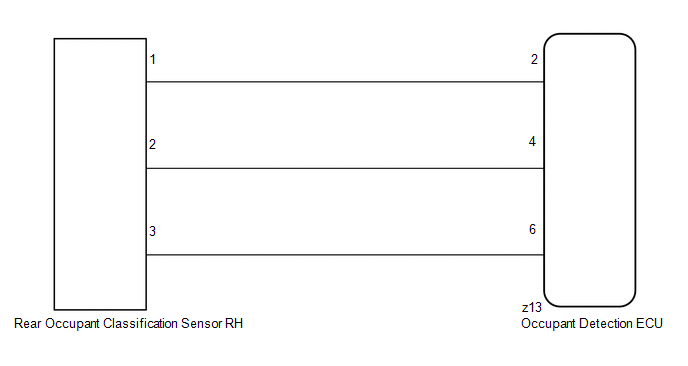

DTC B1788: Rear Occupant Classification Sensor RH Collision Detection [09/2014 - ]: Wiring Diagram

GTY632322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
