Installation [01/2020 - 09/2022]: Procedure

1. Engage the clamp to connect the wire harness to the transmission floor shift assembly.
2. Connect the shift lock control ECU connector.
3. Engage the clamp to connect the wire harness to the transmission floor shift assembly.
4. Connect the transmission control switch connector.
5. Install the clip to the No. 1 console box duct.
6. Temporarily install the transmission floor shift assembly to the vehicle body with the 4 bolts.

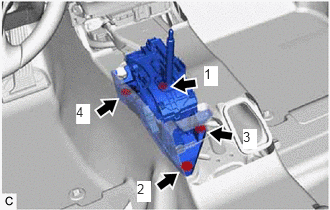

7. Tighten the 4 bolts in the order shown in the illustration.
   Fig 1: Transmission Floor Shift Assembly Tightening Sequence [01/2020 - 09/2022]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 12 N*m (22 kgf*cm, 9 ft.*lbf)

HINT:

Whether the transmission control cable assembly is type A or type B can be determined by the shape of the end.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. for Type A:
   1. Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Slider
      *b	Lock Piece
      *c	Slide
      *d	Pull

   2. Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Lock Nut
      *b	Push in
      *c	Stopper

   3. Connect the transmission control cable assembly to the transmission floor shift assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

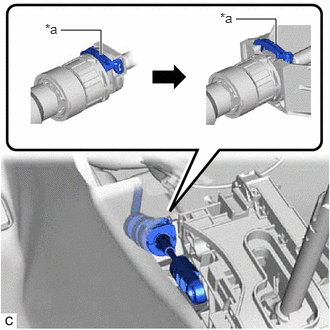

      *a

      Stopper

      NOTE:

      After installation, check that the outer part of the stopper is as shown in the illustration.

   4. Connect the transmission control cable assembly to the transmission floor shift assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Lock Piece
      *b	Adjuster Case

      NOTE:

      • Check that the lock piece is pulled out.
      • Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin.
      • Connect the transmission control cable assembly so that the lock piece faces the driver side.
   5. Push the lock piece into the adjuster case.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Lock Piece
      *b	Push in
      *c	Adjuster Case

      NOTE:

      • Check that the shift lever is in N.
      • Securely push in the lock piece until the slider lock is engaged.
      • When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        *1	Transmission Control Cable Assembly
        *a	Lever Shaft

      • When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.
   6. After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.
2. for Type B:

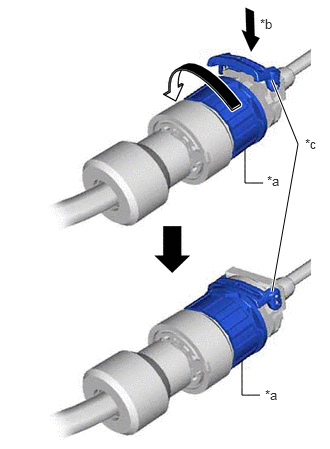

   1. Slide the adjuster case cover in the direction shown by the arrow.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Adjuster Case Cover
      *b	Slide

   2. Using a precision screwdriver, pull out the lock piece of the adjuster case.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Lock Piece
      *b	Pull Out
      *c	Adjuster Case

   3. Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Lock Nut
      *b	Push in
      *c	Stopper

   4. Connect the transmission control cable assembly to the transmission floor shift assembly.
      NOTE:

      After installation, check that the outer part of the stopper is as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Stopper

   5. Connect the transmission control cable assembly to the transmission floor shift assembly.
      NOTE:

      • Before connecting the transmission control cable assembly, check that the shift lever is in N.
      • Securely connect the end of the transmission control cable assembly to the transmission floor shift assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   6. Push in the lock piece of the adjuster case to lock it.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Lock Piece
      *b	Push in
      *c	Adjuster Case

      NOTE:

      • When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        *1	Transmission Control Cable Assembly
        *a	Lever Shaft

      • When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.
   7. Move the adjuster case cover in the direction shown by the arrow.
      NOTE:

      If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the transmission control cable assembly will not be able to lock, and reliable shift operation will not be possible.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Lock Piece
      *b	Adjuster Case Cover

Refer to INSTALLATION [06/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - 09/2022]

See step  1

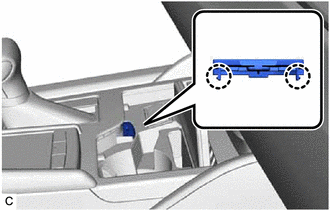

1. Engage the 2 claws to install the shift lock release button cover to the upper console panel sub-assembly.
