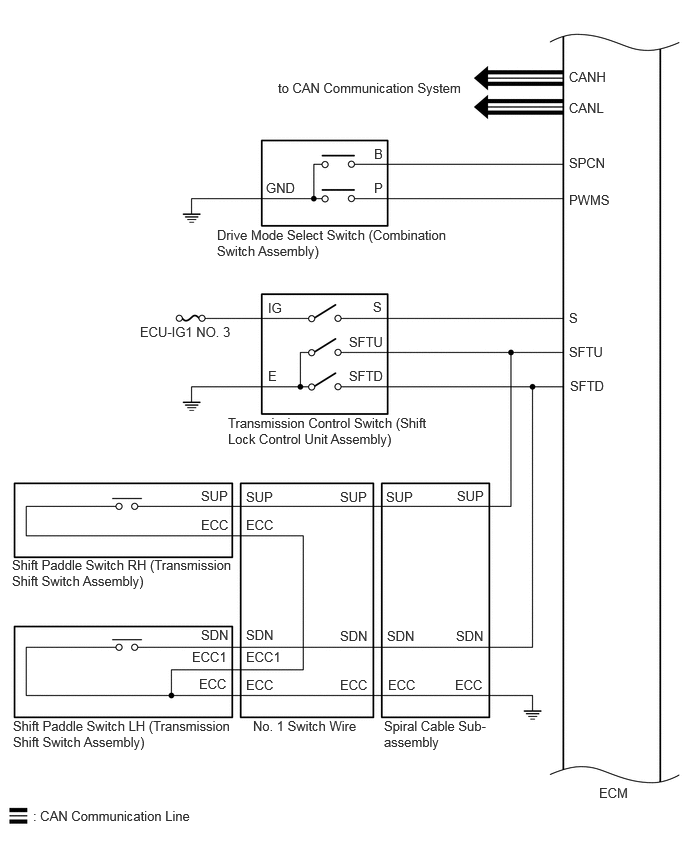

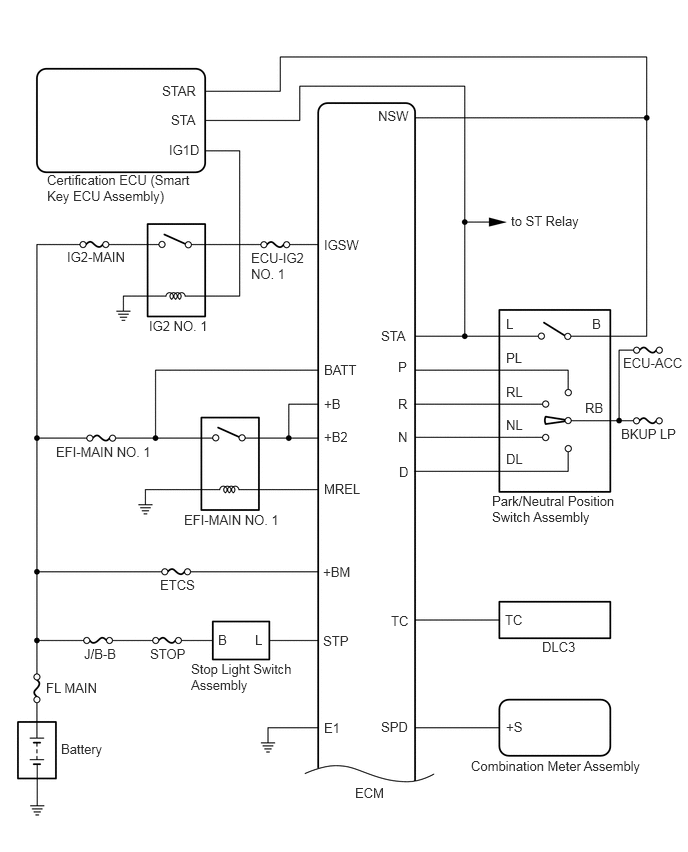

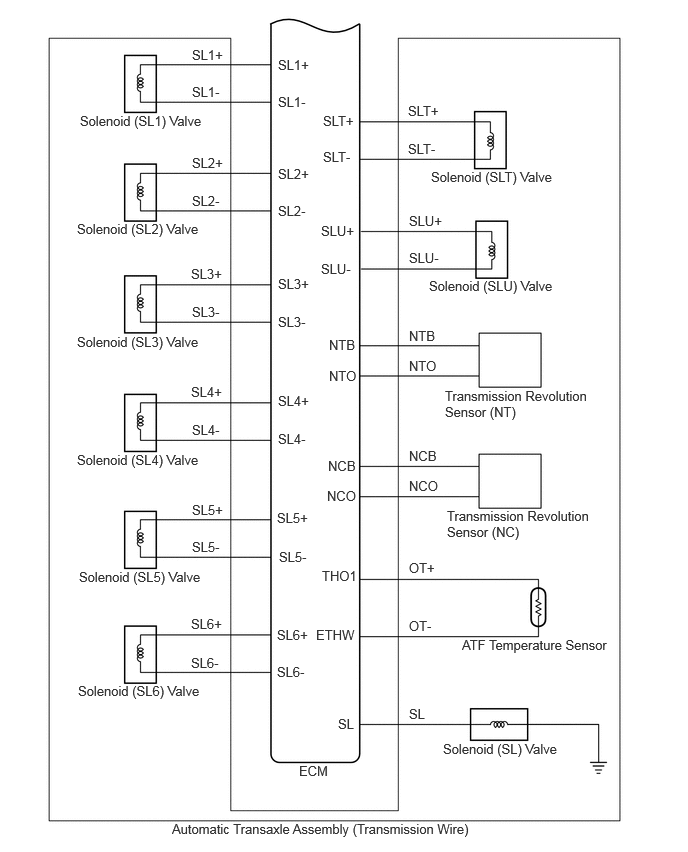

Home >> Lexus >> 2019 >> ES 350 Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission System (UA80E) - Diagnostics - Introduction >> Automatic Transaxle System >> System Diagram [06/2018 - 08/2020] >> System Diagram [06/2018 - 08/2020]
