Washer Motor
>>
Components [06/2018 - ]
Components [06/2018 - ]

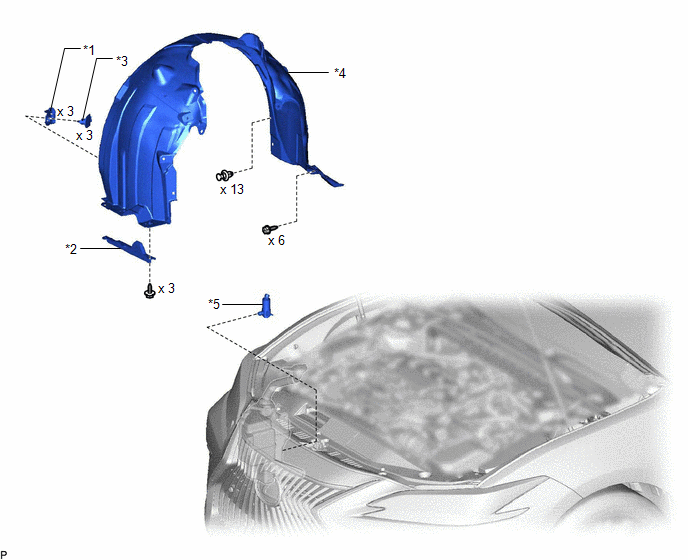

Fig 1: Washer Motor Replacement Components [06/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT FENDER LINER RETAINER
*2
FRONT WHEEL OPENING EXTENSION PAD RH
*3
PIN HOLD CLIP
*4
REAR FENDER SPLASH SHIELD SUB-ASSEMBLY RH
*5
WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
-
-
