Engine Room Relay Block Assembly And Engine Room Junction Block Assembly No. 2 (A25A-FXS) - Front Fender Apron RH: Notes

For additional information, refer to Engine Compartment .

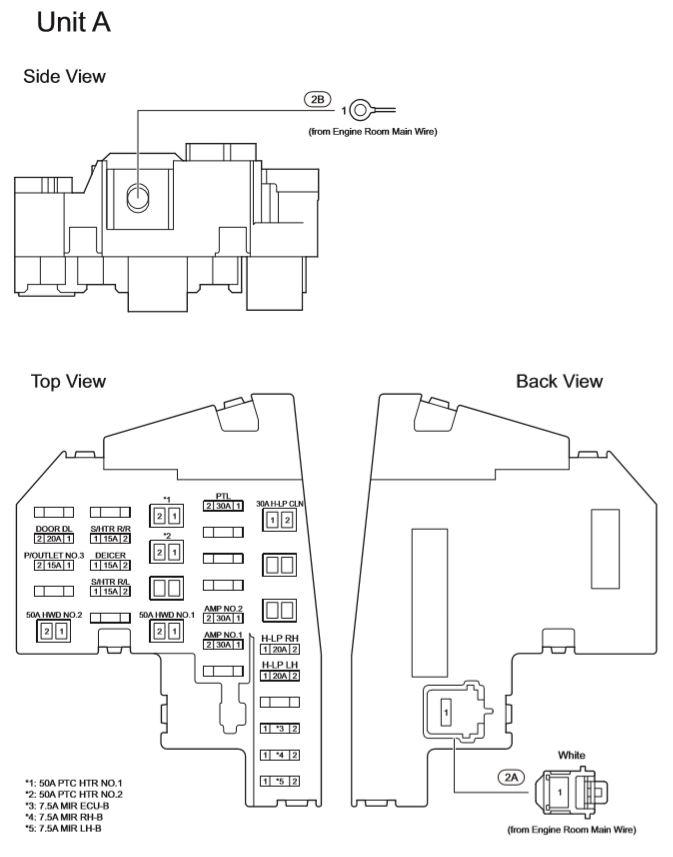

Fig 1: Engine Room R/B And J/B Assembly No. 2 (A25A-FXS) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B NO. 2 (A25A-FXS) INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
H-LP RH Relay
H-LP LH Relay
DEICER RElay

Engine Room R/B And J/B No. 2 (A25A-FXS) Fuse Identification Legend

FUSE
15A	DEICER
15A	P/OUTLET NO. 3
20A	H-LP LH
20A	H-LP RH
30A	AMP NO. 1
30A	AMP NO. 2
30A	PTL
50A	PTC HTR NO. 1
50A	PTC HTR NO. 2

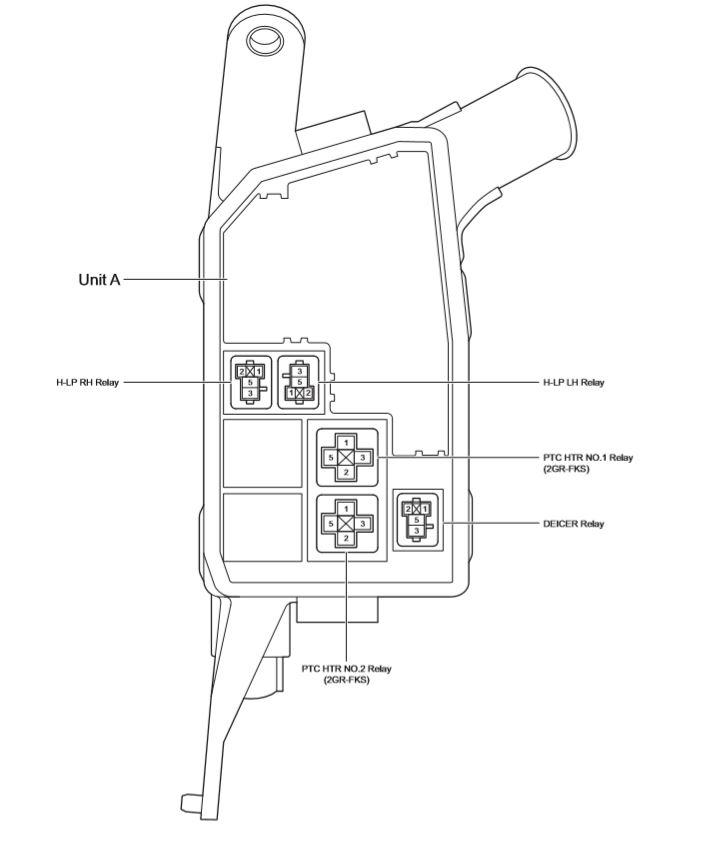

Fig 2: Engine Room R/B And J/B Assembly No. 2 (A25A-FXS) (2 Of 2)
