Engine Room Relay Block Assembly and Engine Room Junction Block No. 2 (2GR-FKS) Assembly Inner Circuit

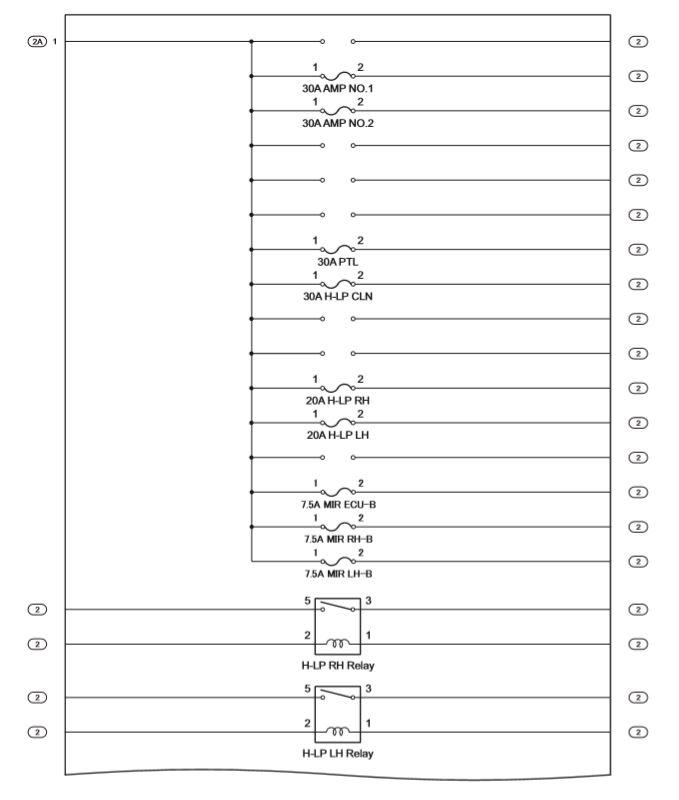

Fig 1: Engine Room R/B And J/B Assembly No. 2 (2GR-FKS) Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 (2GR-FKS) INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
H-LP RH Relay
H-LP LH Relay

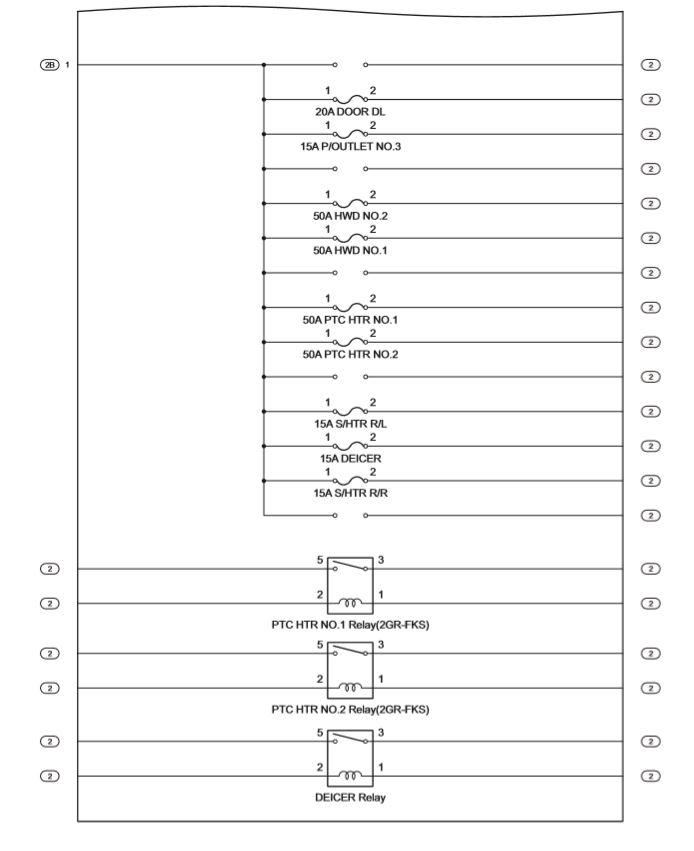

Fig 2: Engine Room R/B And J/B Assembly No. 2 (2GR-FKS) Circuit Diagram (2 Of 2)

ENGINE ROOM R/B AND J/B No. 2 (2GR-FKS) INNER CIRCUIT RELAY IDENTIFICATION
