Engine Room Relay Block Assembly and Engine Room Junction Block No. 1 (A25A-FXS) Assembly Inner Circuit

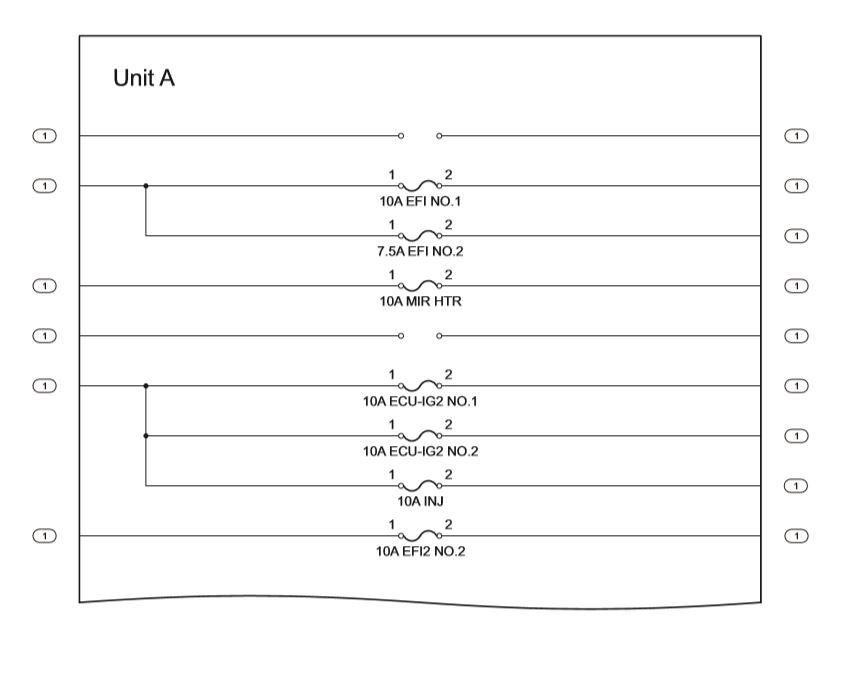

Fig 1: Engine Room R/B And J/B Assembly No. 1 (A25A-FXS) Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

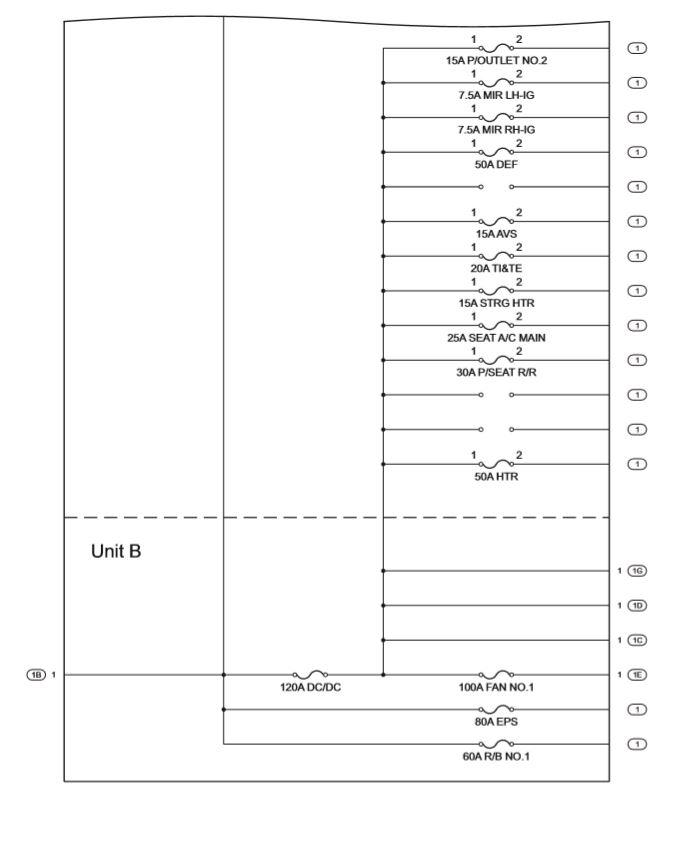

Fig 2: Engine Room R/B And J/B Assembly No. 1 (A25A-FXS) Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

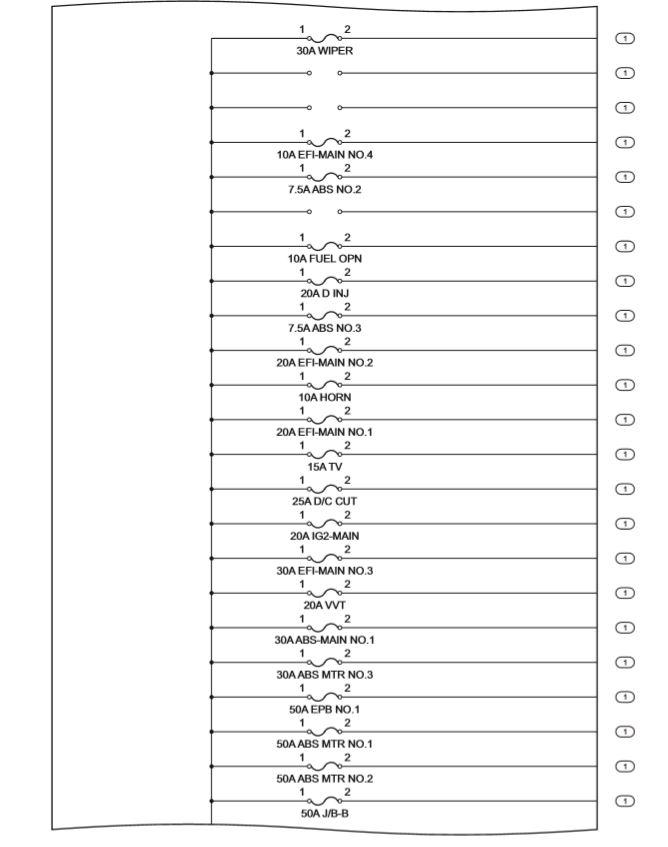

Fig 3: Engine Room R/B And J/B Assembly No. 1 (A25A-FXS) Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

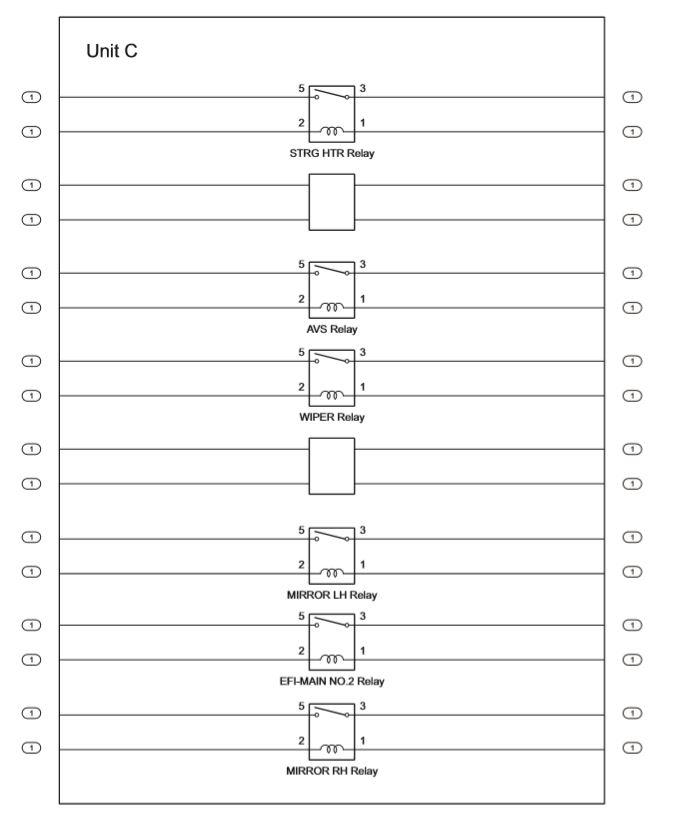

Fig 4: Engine Room R/B And J/B Assembly No. 1 (A25A-FXS) Circuit Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B NO. 1 (A25A-FXS) INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
STRG HTR Relay
AVS Relay
WIPER Relay
MIRROR LH Relay
EFI-MAIN NO. 2 Relay
MIRROR RH Relay

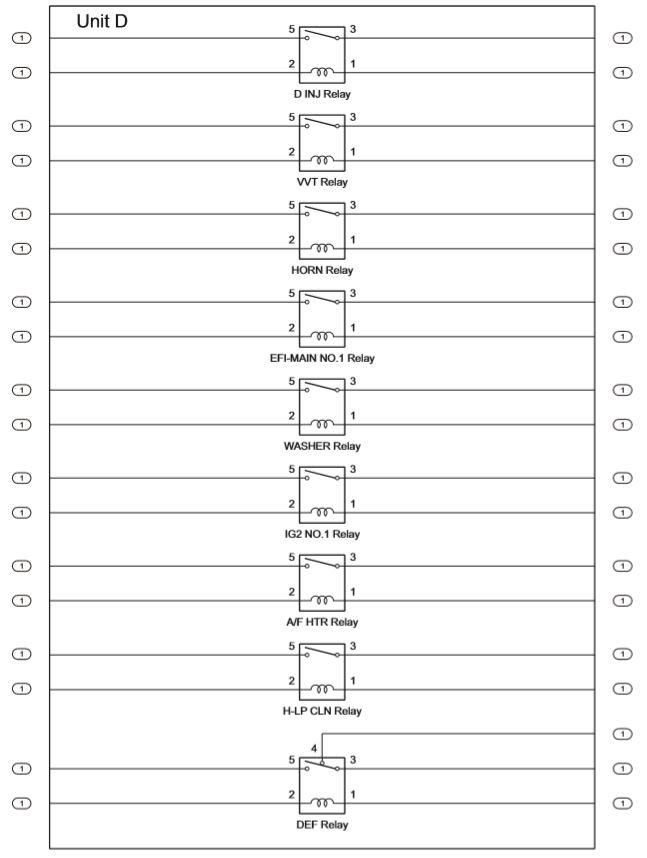

Fig 5: Engine Room R/B And J/B Assembly No. 1 (A25A-FXS) Circuit Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B NO. 1 (A25A-FXS) INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
D INJ Relay
VVT Relay
HORN Relay
EFI-MAIN NO. 1 Relay
WASHER Relay
IG2 NO. 1 Relay
A/F HTR Relay
H-LP CLN Relay
DEF Relay
