Engine Room Relay Block Assembly And Engine Room Junction Block Assembly No. 1 (2GR-FKS) - Front Fender Apron LH: Notes

For additional information, refer to Engine Compartment .

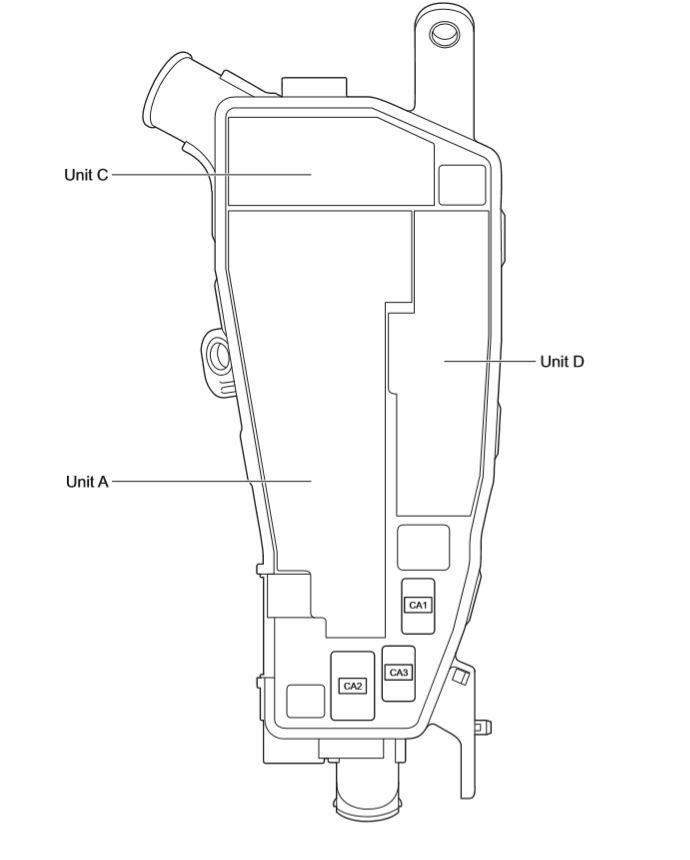

Fig 1: Engine Room R/B And J/B Assembly No. 1 (2GR-FKS) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (2GR-FKS) Fuse Identification Legend

FUSE
7.5A	ABS NO. 2
7.5A	ABS NO. 3
7.5A	EFI NO. 2
10A	A/C COMP
10A	ECU-IG2 NO. 1
10A	ECU-IG2 NO. 2
10A	EFI NO. 1
10A	EFI2 NO. 2
10A	EFI-MAIN NO. 4
10A	ETCS
10A	FUEL OPN
10A	HORN
10A	INJ
10A	MIR HTR
15A	AVS
15A	P/OUTLET NO. 2
15A	STRG HTR
15A	TV
20A	A/F HTR
20A	D INJ
20A	EFI-MAIN NO. 1
20A	EFI MAIN NO. 2
20A	IG2-MAIN
20A	TI&TE
20A	VVT
25A	D/C CUT
25A	SEAT A/C MAIN
30A	ABS MTR NO. 3
30A	ABS NO. 2
30A	ABS-MAIN NO. 1
30A	EFI-MAIN NO. 3
30A	ST NO. 1
30A	WIPER
50A	ABS MTR NO. 1
50A	ABS MTR NO. 2
50A	ABS NO. 1
50A	DEF
50A	EPB NO. 1
50A	HTR
50A	J/B-B
60A	FAN NO. 1
80A	EPS
100A	FAN NO. 1
120A	DC/DC
140A	ALT

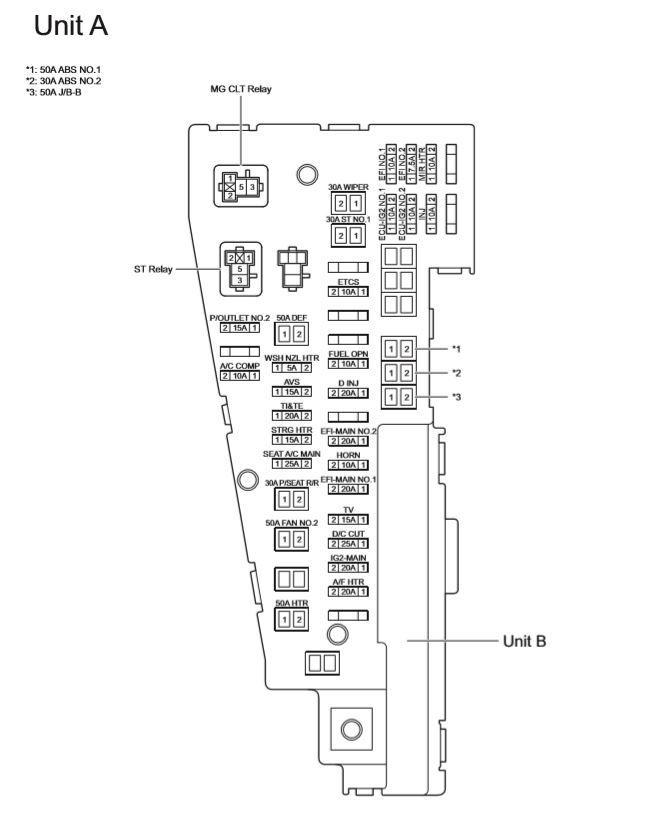

Fig 2: Engine Room R/B And J/B Assembly No. 1 (2GR-FKS) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (2GR-FKS) Relay Identification

RELAY DESCRIPTION
MG CLT Relay
ST Relay

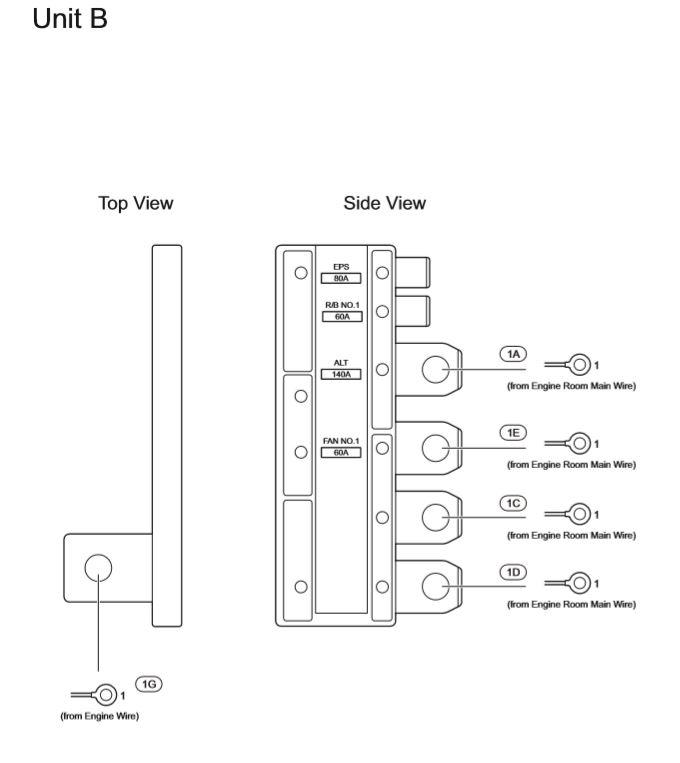

Fig 3: Engine Room R/B And J/B Assembly No. 1 (2GR-FKS) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

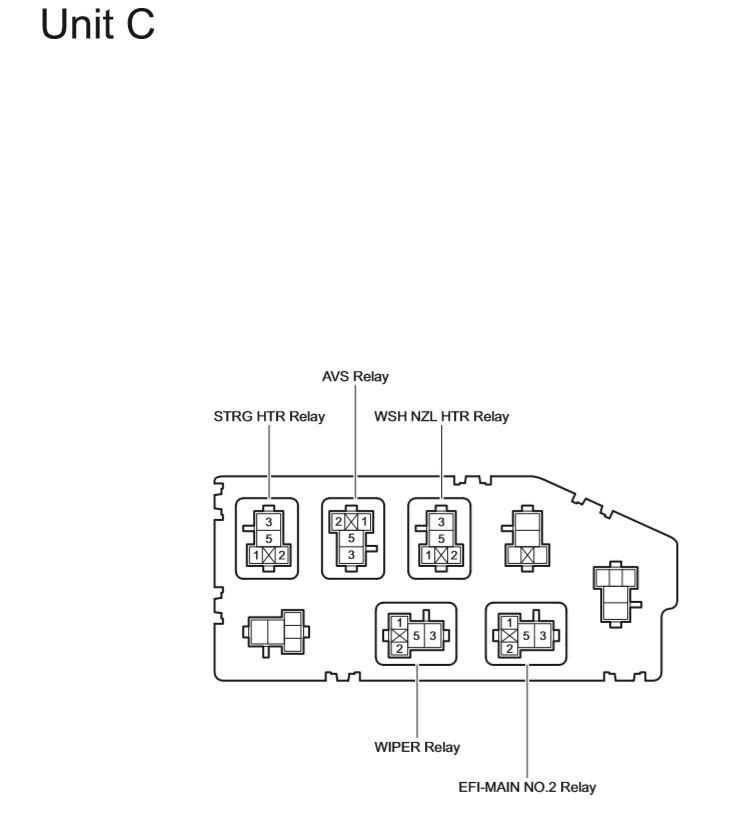

Fig 4: Engine Room R/B And J/B Assembly No. 1 (2GR-FKS) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (2GR-FKS) Relay Identification

RELAY DESCRIPTION
STRG HTR Relay
AVS Relay
WSH NZL HTR Relay
WIPER Relay
EFI-MAIN NO. 2 Relay

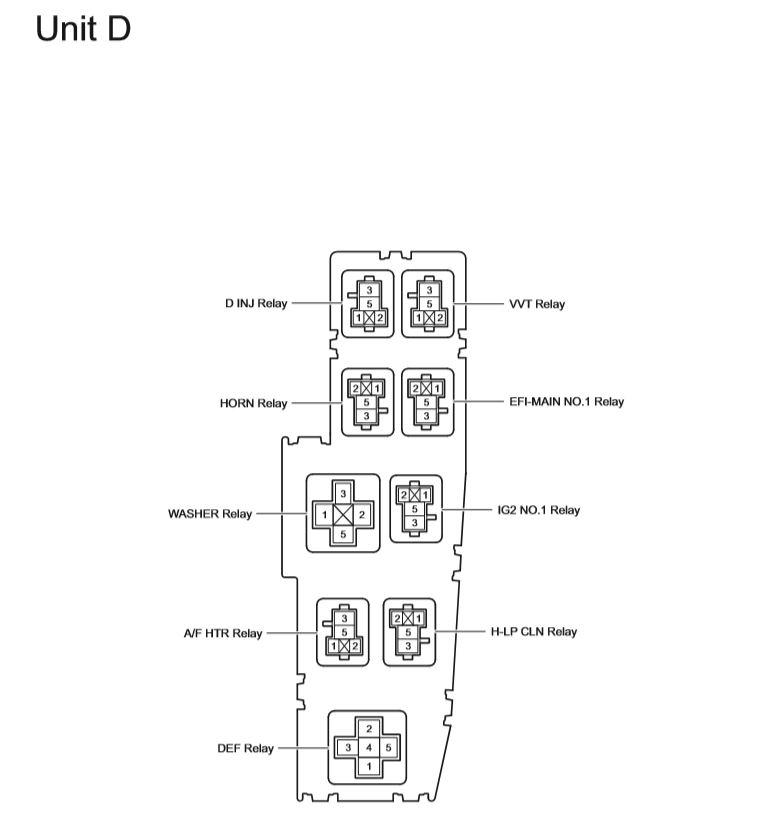

Fig 5: Engine Room R/B And J/B Assembly No. 1 (2GR-FKS) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (2GR-FKS) Relay Identification

RELAY DESCRIPTION
D INJ Relay
HORN Relay
WASHER Relay
A/F HTR Relay
DEF Relay
VVT Relay
EFI-MAIN NO. 1 Relay
IG2 NO. 1 Relay
H-LP CLN Relay
