Instrument Panel Relay Block Assembly No. 5 - Instrument Panel Reinforcement: Notes

For additional information, refer to Instrument Panel .

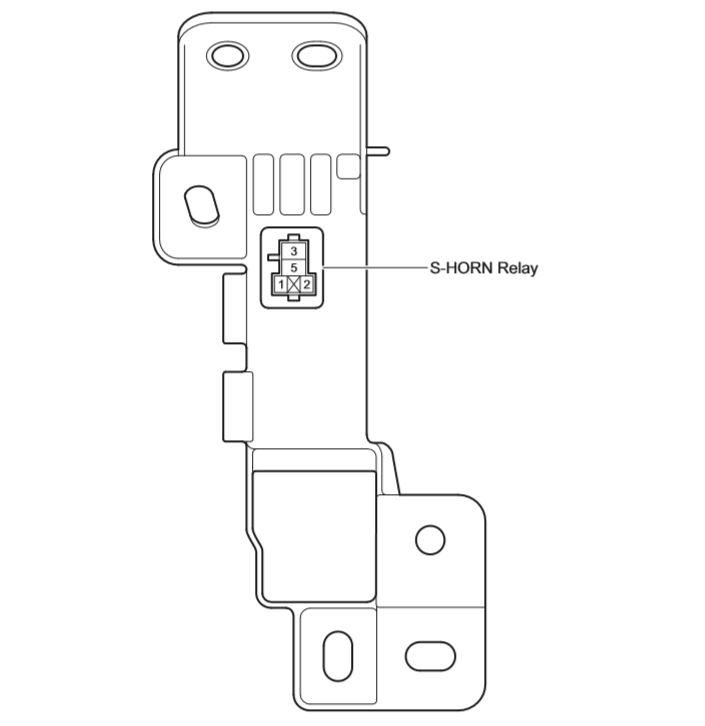

Fig 1: Instrument Panel R/B Assembly No. 5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL R/B ASSEMBLY No. 5 RELAY IDENTIFICATION

RELAY DESCRIPTION
S-HORN
