Instrument Panel Relay Block Assembly No. 4 Inner Circuit

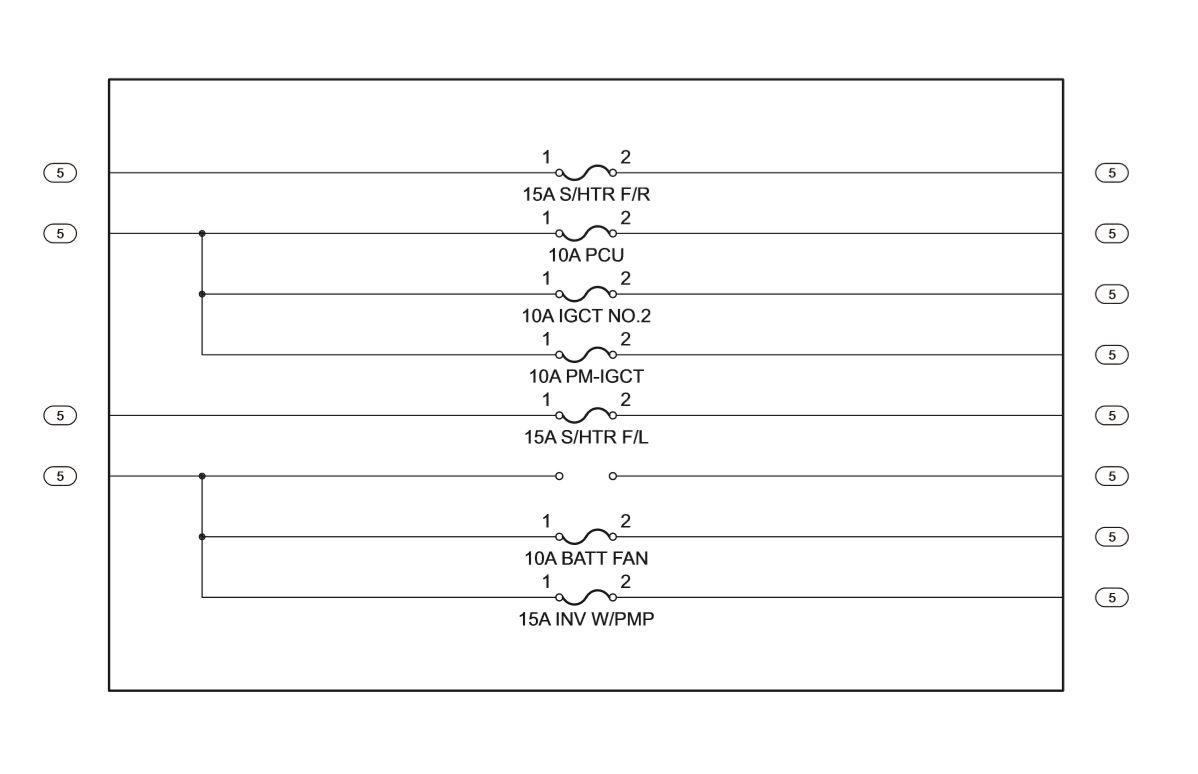

Fig 1: Instrument Panel R/B Assembly Circuit Diagram

G00586123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
