Instrument Panel Block Assembly No. 3 Inner Circuit

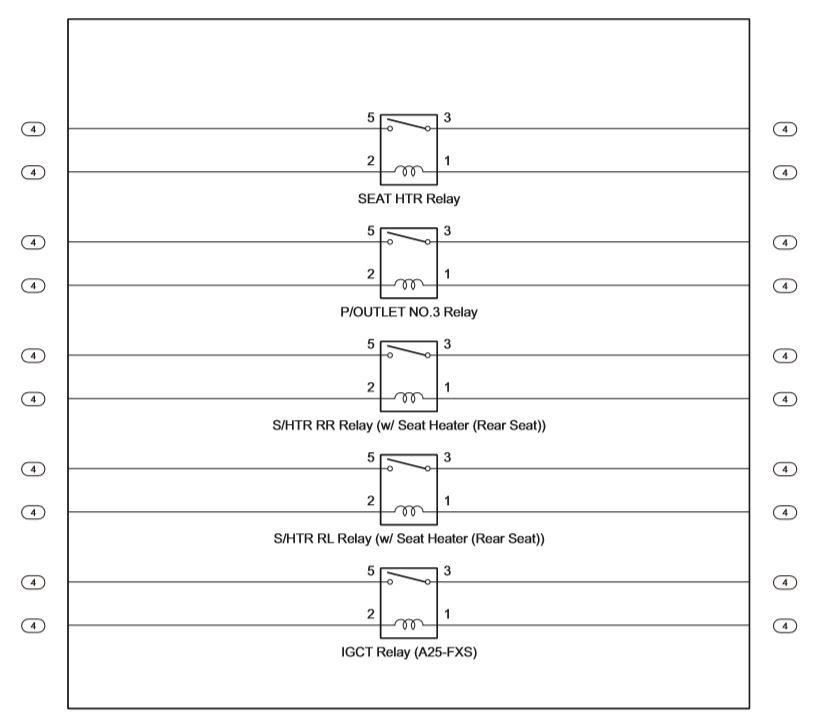

Fig 1: Instrument Panel Relay Block Assembly No. 3 Circuit Diagram With Relays
G00586121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Body Relay Block Assembly No. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
IGCT Relay
SEAT HTR Relay
P/OUTLET NO. 3 Relay
S/HTR RR Relay
S/HTR RL Relay
