Instrument Panel Junction Block Assembly (2GR-FKS) Inner Circuit

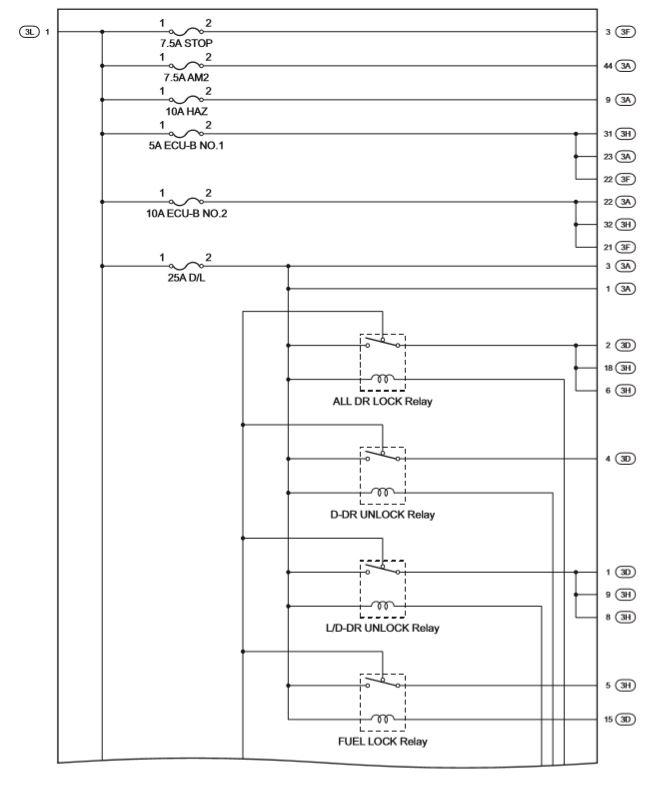

Fig 1: Instrument Panel J/B Assembly (2GR-FKS) Circuit Diagram With Relays (1 Of 4)
G00586113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT (2GR-FKS) RELAY IDENTIFICATION

RELAY DESCRIPTION
L/D DR UNLOCK Relay
ALL DR LOCK Relay
D-DR UNLOCK Relay
FUEL LOCK Relay

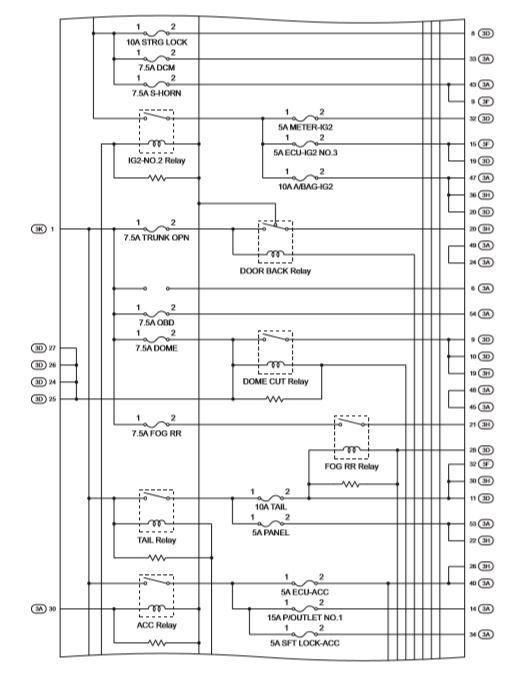

Fig 2: Instrument Panel J/B Assembly Circuit (2GR-FKS) Diagram With Relays (2 Of 4)
G00586114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT (2GR-FKS) RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2-NO. 2 Relay
DOOR BACK Relay
DOME CUT Relay
FOG RR Relay
TAIL Relay
ACC Relay

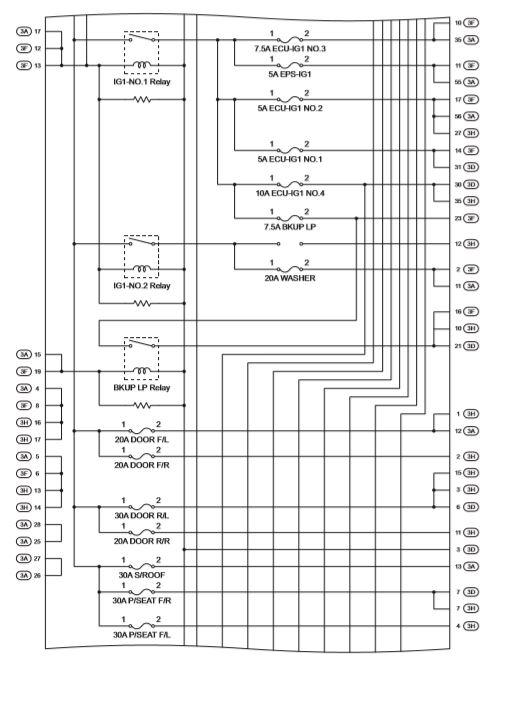

Fig 3: Instrument Panel J/B Assembly Circuit (2GR-FKS) Diagram With Relays (3 Of 4)
G00586115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT (2GR-FKS) RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1-NO. 1 Relay
IG1-NO. 2 Relay
BKUP LP Relay
Fig 4: Instrument Panel J/B Assembly Circuit (2GR-FKS) Diagram With Relays (4 Of 4)
G00586054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT (2GR-FKS) RELAY IDENTIFICATION

RELAY DESCRIPTION
FUEL OPN Relay
P/OUTLET NO. 2 Relay
