Fusible Link Block Assembly - Luggage Room RH: Notes
For additional information, refer to Body .

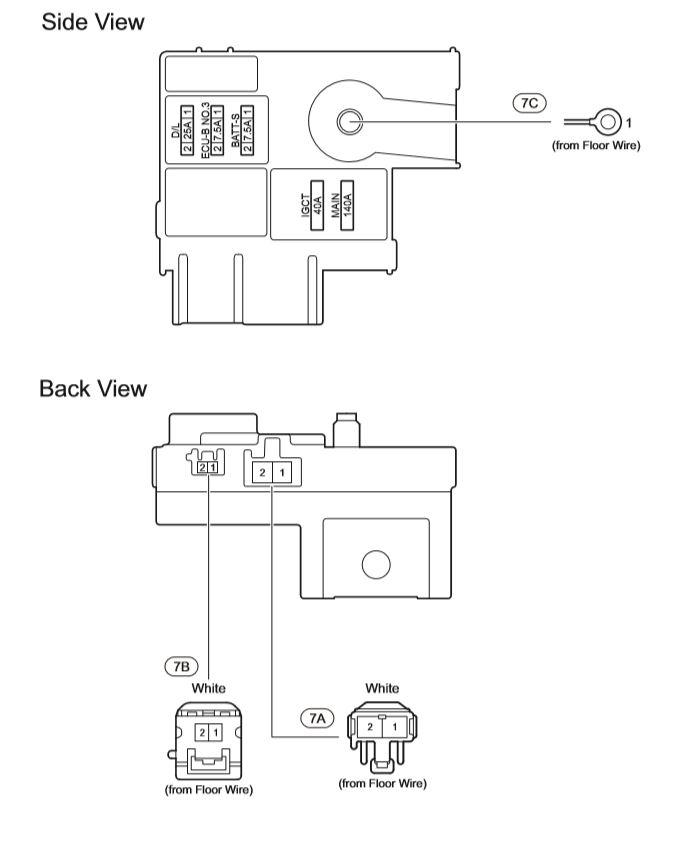

FUSIBLE LINK BLOCK ASSEMBLY FUSE IDENTIFICATION
| FUSE | |
|---|---|
| 7.5A | BATT-S |
| 7.5A | ECU-B NO. 3 |
| 25A | D/L |
| 40A | IGCT |
| 140A | MAIN |
For additional information, refer to Body .
| FUSE | |
|---|---|
| 7.5A | BATT-S |
| 7.5A | ECU-B NO. 3 |
| 25A | D/L |
| 40A | IGCT |
| 140A | MAIN |
