Fusible Link Block Assembly Inner Circuit

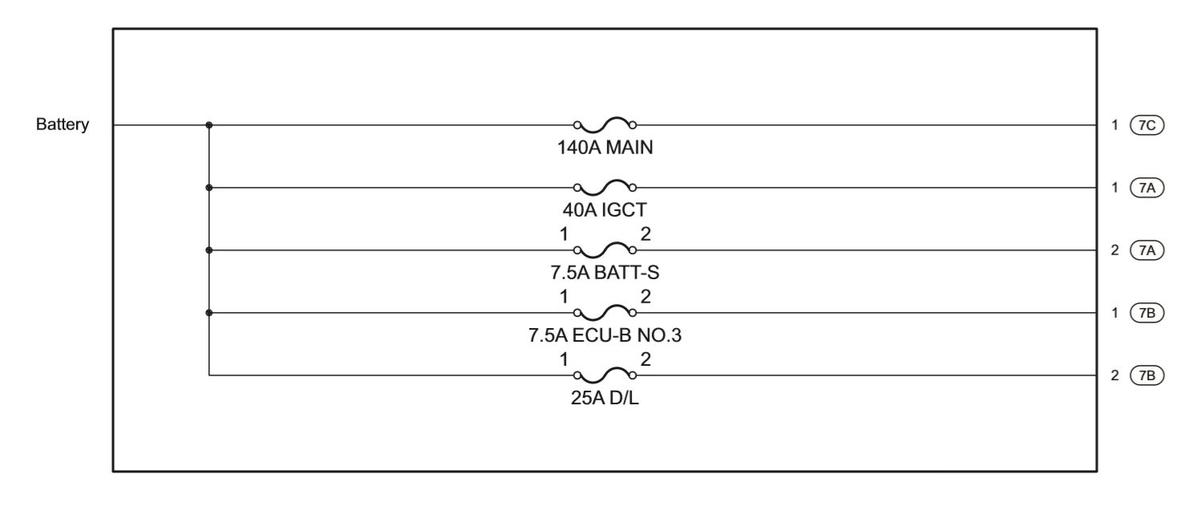

Fig 1: Fusible Link Block Assembly Circuit Diagram

G00586127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
