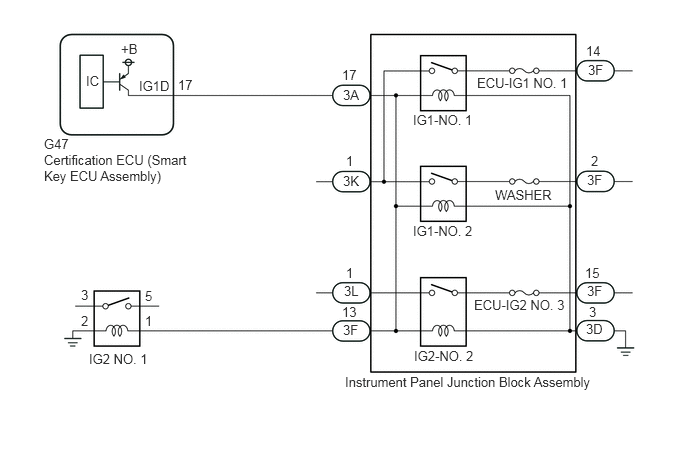

Power Source Mode does not Change to ON (IG) [06/2018 - ]: Wiring Diagram

GTY819651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
