Power Source Mode does not Change to ON (IG and ACC) [06/2018 - ]: Wiring Diagram

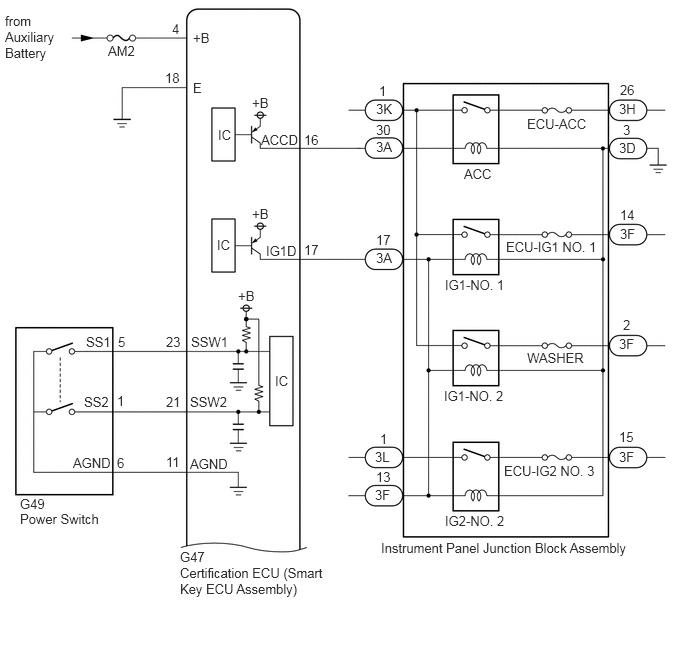

GTY804931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

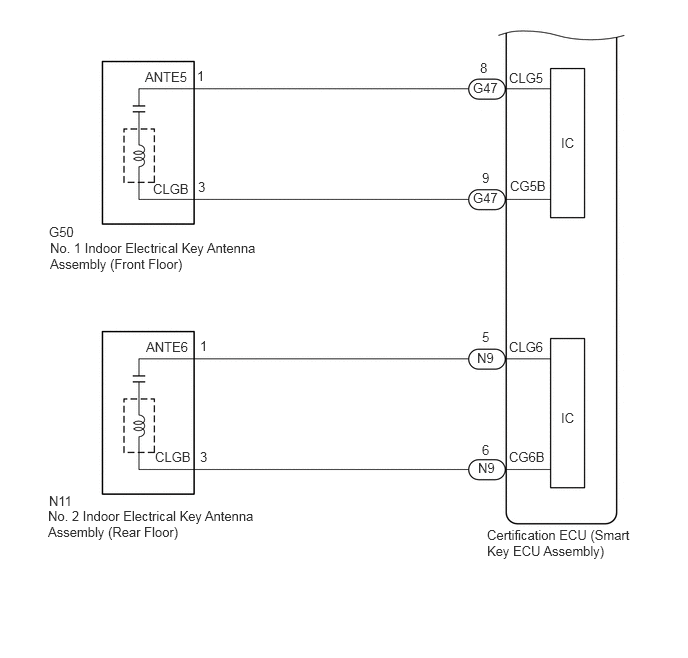

GTY831077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
