Inspection [10/2015 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.
*a Component without harness connected

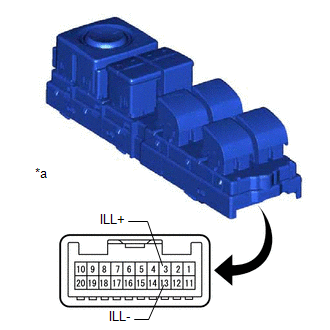

(Multiplex Network Master Switch Assembly)- Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Measurement Condition Specified Condition Auxiliary battery positive (+) → 3 (ILL+)
Auxiliary battery negative (-) → 13 (ILL-)LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
