System Diagram [08/2019 - ]

Fig 1: SFI System Wiring Diagram (1 Of 5) [08/2019 - ]
GTY634912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: SFI System Wiring Diagram (2 Of 5) [08/2019 - ]
GTY678780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: SFI System Wiring Diagram (3 Of 5) [08/2019 - ]
GTY679970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: SFI System Wiring Diagram (4 Of 5) [08/2019 - ]
GTY645163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

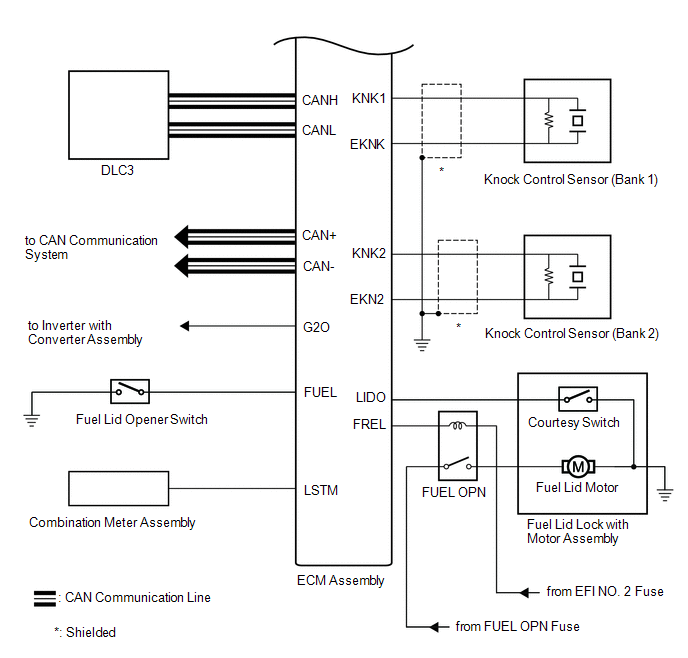

Fig 5: SFI System Wiring Diagram (5 Of 5) [08/2019 - ]
GTY947778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
