Removal [10/2015 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 1 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  2. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  5

  3. REMOVE FRONT WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  4. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 3 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  5. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    See step  8

  6. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

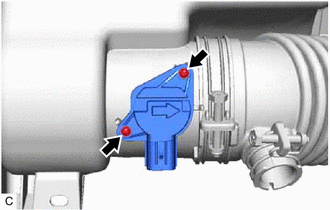

    1. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.

      GTY659093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
